Description

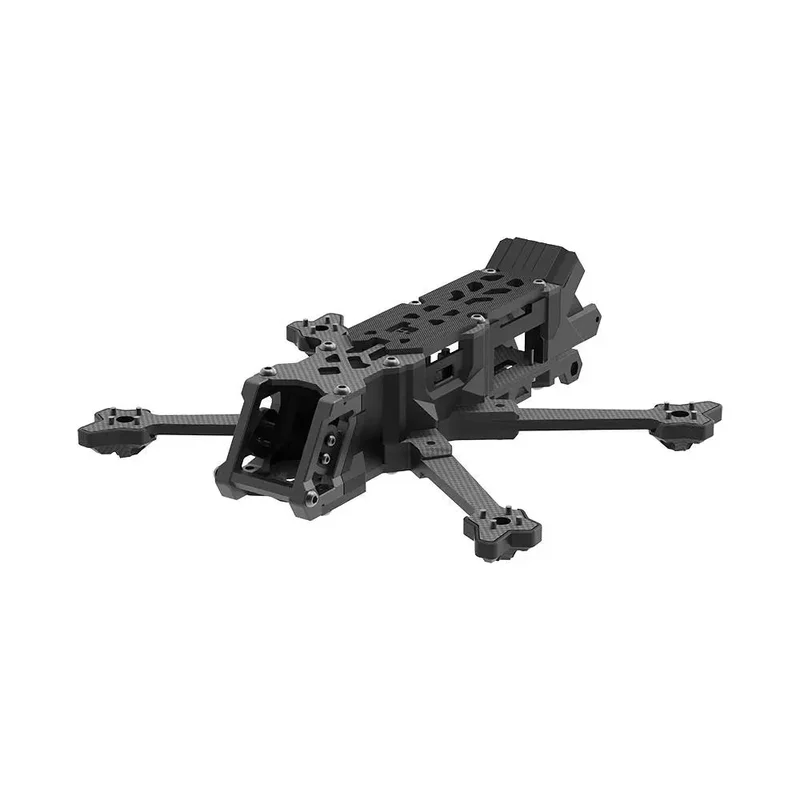

iFlight Nazgul Evoque F4X Frame Kit
The iFlight Nazgul Evoque F4X Frame Kit is engineered for optimal performance and resilience in the world of FPV flying. This frame kit delivers an ideal combination of strength and lightweight design, making it perfect for both racing and freestyle enthusiasts.
Constructed with premium materials, the Evoque F4X frame enhances your drone’s agility and stability, allowing for smooth and precise flight maneuvers. Its user-friendly modular design simplifies assembly and modifications, catering to both novice and expert pilots alike.
Key features include:
- Robust Yet Lightweight: Promotes agility without compromising durability.
- High-Quality Build: Designed to endure intense racing and freestyle conditions.
- Modular Framework: Facilitates easy customization and upgrades.
- Versatile Compatibility: Suitable for various FPV configurations.
Take your FPV experience to the next level with the iFlight Nazgul Evoque F4X Frame Kit!
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Introducing the latest iteration of the Nazgul evoque F4, featuring enhanced performance and a lighter, more compact design.
Highlights
Camera Mount for a wider camera FOV with TPU damping inserts
Side Panels to perfectly fit the O3 Air Unit in the back
Dual 5.8G VTX Antenna TPU mount
Latest Nazgul Frame Upgrades for Maximum Protection
Optional Parts to select (not included in frame kit):
New Anti Spark Filter to prevent rapid voltage and current spikes plugging in a battery
Specifications
Product Name: Evoque F4 Frame Kit
Geometry model: Squashed X/ Deadcat
Frame wheelbase: 184.8mm (Squashed X) / 185 mm (DeadCat)
Frame Dimension: L148.5*W110*H36 mm (Squashed X) / L149*W110*H36 mm (DeadCat)
Frame Body Dimension: 36mm
Arm Thickness: 4mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Max Flight Stack Height: 23mm
Max VTX Height: 23mm
Flight Stack Mounting: 20*20/Φ3mm
VTX Mounting: 25.5*25.5/Φ1.6mm
Motor Mounting: 12x12mm/φ2mm
Weight: 163grams
Packing List
1 x Evoque F4 Frame Kit
1 x TPU Set
1 x GoPro TPU Base Mount
1 x Screw Bag
1 x Anti-slip Battery Pad
2 x Battery Strap
