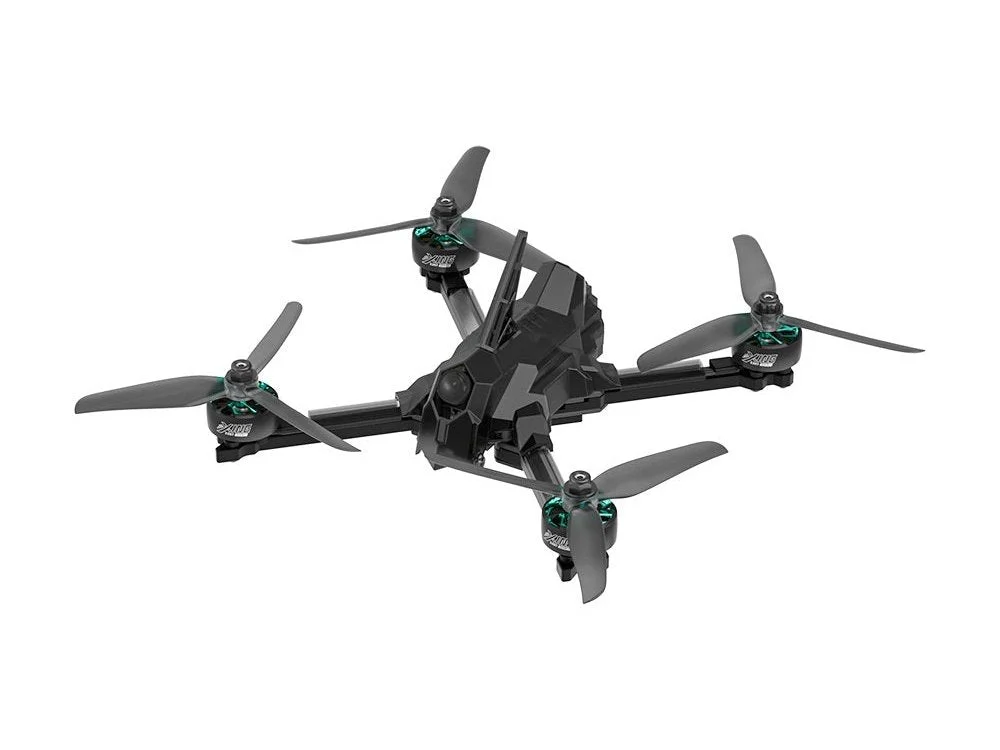

iFlight Mach R5 Sport 6S Race Drone

Description

The Mach R5 Sport aims to provide racing pilots with a high-quality finished FPV drone while still allowing for DIY customization. By utilizing carbon plates and plastic components, the internal structure layout has been significantly improved. This not only facilitates easy maintenance but also reduces the weight of the drone while enhancing overall stability. The organized space layout guarantees that hardware components can be positioned logically, thus minimizing the risks of damage from crash impacts.

Lightweight and Compact

As a well-built 5-inch drone, the Mach R5 Sport weighs only 300 grams. Its redesigned frame layout ensures precise fitting of all components inside the canopy, maximizing space utilization and overall compactness.

Innovative Quick-Release Aero Shell

The unique canopy is not only engineered with aerodynamics but also features quick-release buckle for easy replacement and maintenance with just a twist. The shell also helps to shield the electronics from dirt and moisture so you can have more confidence in critical situations.

Convenient User Experience

Secured battery plug to prevent the power cable from being hit by the propellers, and with a built-in antenna to keep everything well protected and enhance the overall appearance.

The front-mounted receiver slot simplifies receiver replacement, and the new wire shielding tube design can place LED strips for protection, effectively preventing damage.

DIY customized space

• Standard 20*20 mounting holes, compatible with HDZERO and other VTX.
• Antenna mount can be added with silicone pads, adapting to more regular VTX antennas.
• The canopy cover available in carbon plate with TPU, can be replaced by removing 6 screws.

Specifications:

• Product Name: Mach R5 Sport 6S Analog
• FC: BLITZ Mini F722 Flight Controller
• ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC
• Video Transmission: BLITZ Force VTX 600mW
• Receiver: ExpressLRS 2.4GHz
• Frame: 210mm wheelbase
• Motor: R5 2207 2050KV motors
• Prop: Nazgul R5 V2 propellers
• Weight: 300g
• Takeoff Weight: Approx. 525g (With 6S 1400mAh battery)
• Dimensions (L×W): 148*148*51 mm
• Max Speed: 208km/h
• Maximum Takeoff Altitude: 6000 m
• Max Hover Time: Approx. 12 mins (With 6S 1400mAh no load)
• Max Wind Speed Resistance: Level 6
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antennas: Single Antenna

Includes:
1x iFlight Mach R5 Sport 6S Race Drone
1x Battery Strap
2x R5 Prop (Pairs)
1x Battery Pad
