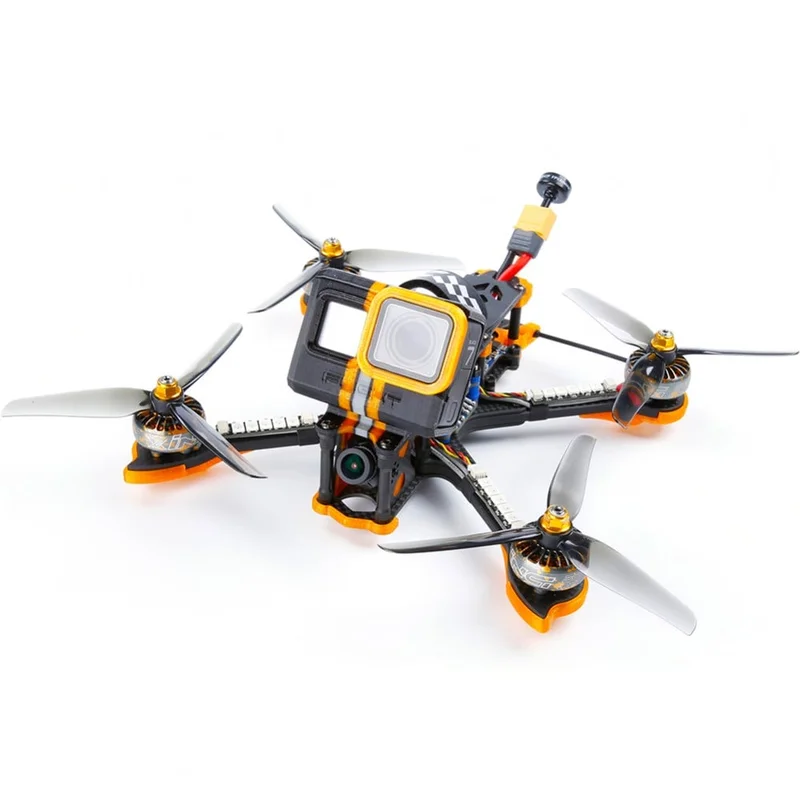

iFlight Cidora SL5 4S FPV Drone – PNP
We are proud to offer a Cidora SL5 4S FPV Drone – PNP with our best iFlight components installed and pre-tuned!
Different power version (4S, 6S cell count) to fit most pilots requirements.
Features：
– Full 3K Carbon Fiber airframe
– Easy arm swaps -215mm wheelbase，115g
– Popular Squish X configuration
– SucceX F7 TwinG Bluetooth with 50A 4in1 ESC stack
Specifications:
– Total Dimensions: 165*138mm (body dimension)
– Frame Wheelbase: 215mm
– SucceXF7 TwinG Bluetooth FC
– SucceX 50A 2-6s 4-in-1 ESC Dshot1200
– XING CAMO X2306 2450KV (4S )/ XING CAMO X2306 1700KV(6S)
– Caddx.us Ratel 2.1mm FPV cam
– Nazgul 5140 propellers
– Weight: 384.2 (without GoPro TPU mount)
PRE-TUNED & PRE-SETUP:
– Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”
– Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”
SucceX F7 TwinG BT Flight Controller(TwinICM20689)
– MCU：216MHz STM32F722RET6
– Gyro: 2x ICM20689（SPI）
– Baro: Yes (Altitude on your OSD)
– Betaflight OSD：YES
– Bluetooth wireless adapter (Antenna integrated, can be linked to the SpeedyBee smartphone app)
– Blackbox: Onboard 32MB
– 5x Uarts
– 8x Motor outputs
– 8-pin 4in1 ESC port
– 4-pin VTX connector
Betaflight
-Betaflight 4.1 With RPM Filtering CLI Diff Download here
Older Betaflight:
-Betaflight Firmware：betaflight_4.0.5_STM32F7X2.hex
– Firmware target：IFLIGHT_F722_TWING.config
Physical
– Mounting hole：30.5*30.5mm，φ4mm with Grommets φ3mm
-Size：36*36mm
-Weight：6.2g
SucceX 50A 2-6S 4-in-1 ESC Dshot1200
– Dimension: 43*39mm
– Mounting Holes: 30.5*30.5mm/Φ3mm
– Weight:14.4g
– Volts input: 2-6S
– STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
– Current sensor: Yes
-Telemetry：Supported
– BEC: No
– Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.
– Target: iFlight-BL32-4IN1
– BLHeliSuite download (BL32):.file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file
SucceX the Force 5.8GHz 800mW VTX
– The output power is stable;
– Transmit power 4 gear switch: 25mW/100mW/400mW/800mW;
– Output 40 channels.
– Frequency lock fast, the boot does not interfere with companions;
– Built-in output power self-check function;
– Full format video format: NTSC /PAL;
– Wide input voltage range. low power consumption:
7V～36V，+12V/380mA@800mW;
– Small size:36*36*3mm
– Mounting holes 4-M3
– Lightweight: 7.2g(excluding antenna)
Specifications:
– Item: SucceX-Force 800mW adjustable VTX
– Input voltage: 7-36V
– Output voltage/ Max current: 5V 1A
– 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@100mW，250mA@400mW, 380mA@800mW
– Channel: 40
– size:36*36*3mm
– PIT/25mW/100mW/400mW/800mW
Recommend Parts (Not included):
– TPU 3D Printed Camera Mount for Gopro Hero 5/6/7 with ND8 Filter
– TPU 3D Printed Camera Mount for GoPro Session
Recommend batteries (not included):
4S 1300mAh to 2000mAh
6s 1050mAh to 1500mAh
PRE-TUNED & PRE-SETUP:
– Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”
– Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”
Package Included:
-1x Cidora SL5 4S FPV Drone – PNP
-2 sets Nazgul 5140 propellers
-1 set LED Lights
NOTE: The Hero 7 camera and TPU print camera mount are not included.
