Description

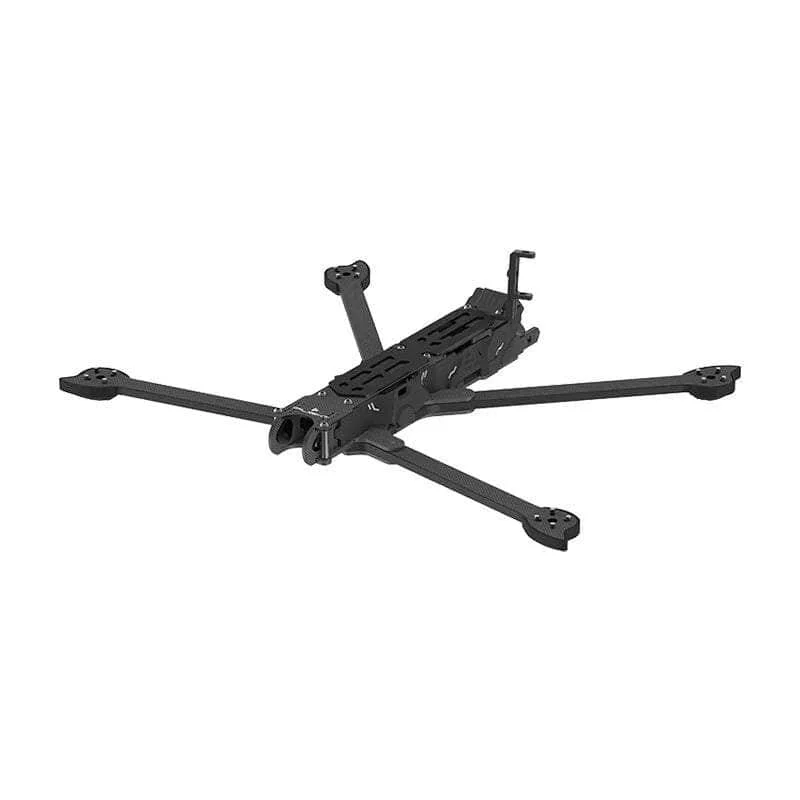

The KING of Long Range FPV! A super-efficient iFlight 9inch Long-Range bird that can go where you couldn’t go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended for slow cruising.
Check out all of our 6″ + frames and our selection of iFlight gear!
Features
- 30.5×30.5mm, 25x25mm, or 20x20mm for almost any VTX mounting
- 16x16mm or 19x19mm Motor Mounting
- 6mm Arm Thickness
Specifications
- Wheelbase: 405mm
- Geometry: DeadCat (DC)
- Frame Dimension: L360xW235xH34 mm
- Frame Body Dimension: 34mm
- Arm Thickness: 6mm
- Bottom Plate Thickness: 3mm
- Top Plate Thickness: 2mm
- Upper Plate Thickness: 3mm
- Max Flight Stack Height: 21mm
- Max VTX Height: 30mm
- Flight Stack Mounting: 30.5×30.5mm φ3mm
- VTX Mounting: 30.5×30.5 φ3mm / 25×25 φ1.6mm / 20×20 φ2mm
- Motor Mounting: 16x16mm / 19x19mm φ3mm
- Weight: 377g
Includes
- 1x iFlight Chimera9 ECO 9″ Frame Kit
- 1x TPU Set
- 1x Screw Bag
- 1x Anti-Slip Battery Pad
- 2x Battery Strap
- 4x AMASS MR30 Plugs
