iFlight Blitz Mini F7 Flight Controller V1.2

Description

iFlight’s Blitz line of electronics offers enhanced circuit designs, superior components, and reduced electrical noise, resulting in improved performance, durability, and reliability. These components are excellent choices for any build.

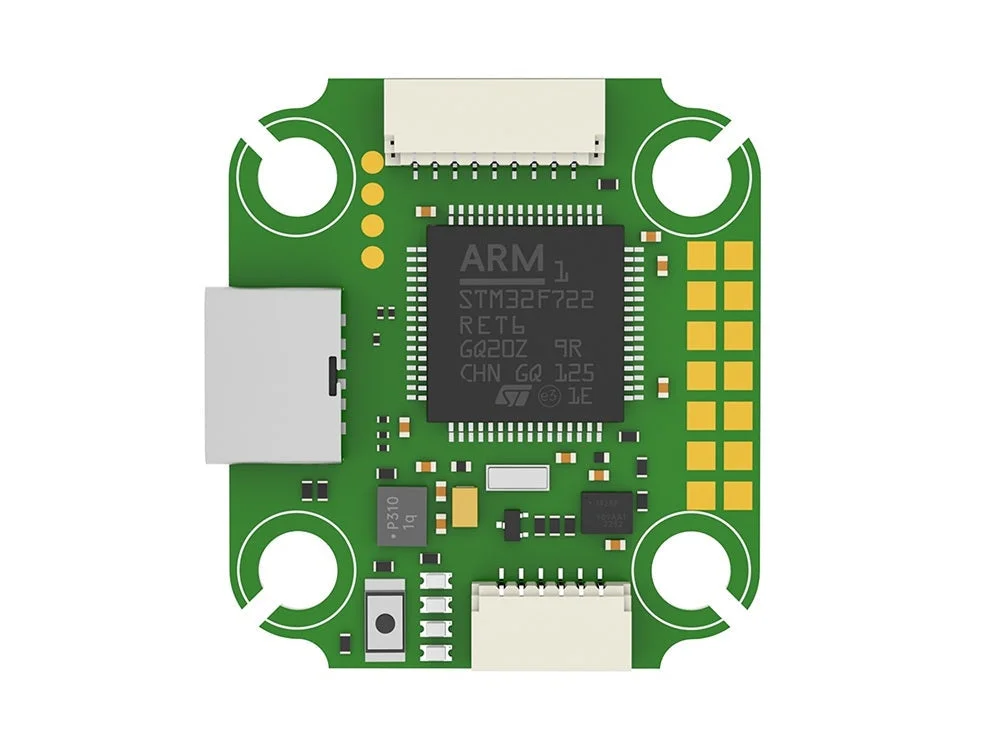

The Blitz Mini F7 Flight Controller is a compact 30.5 x 27 mm board with 20 x 20 mm mounting holes. Despite its small size, it is equipped with a powerful STM32F722 MCU, 8 MB of flash memory for Blackbox functionality, the ICM42688 gyro, and built-in indicator LEDs for visual debugging. This flight controller is likely to be a popular option for anyone seeking a Betaflight FC.

Features:

• Improved circuit design, better components and lower electrical noise!
• DJI HD VTX Connector (Plug-and-Play / No soldering required)
• FC indicator LEDs for visual debugging

Specifications:

• MCU: STM32 F722
• Gyro: ICM42688
• Barometer: DPS310
• OSD Chip: AT7456
• Flash: 8MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• I2C serial: SDA/SLA pads
• Smartaudio / IRC Tramp VTX protocol supported
• LED controller: Yes
• Beeper pad: Yes
• Firmware target: IFRC-IFLIGHT_BLITZ_F722
• Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
• Dimensions: 30.5×27 mm
• Weight: 5g

Wiring Suggestions:

• UART 1 for VTX HD / Analog
• UART 2 for a Receiver
• UART 3/4/5 for GPS or other sensors that require a serial port
• UART 6 for ESC Telemetry

Includes:
1x iFlight Blitz Mini F7 Flight Controller V1.2
1x Cable Set
1x Silicon Grommet Set
