Hot Racing XMX288CE Steel Hd Cv Drive Shafts Axles/Aluminum Hex Traxxas X-Maxx

Description

Hot Racing XMX288CE Steel Hd Cv Drive Shafts Axles/Aluminum Hex Traxxas X-Maxx

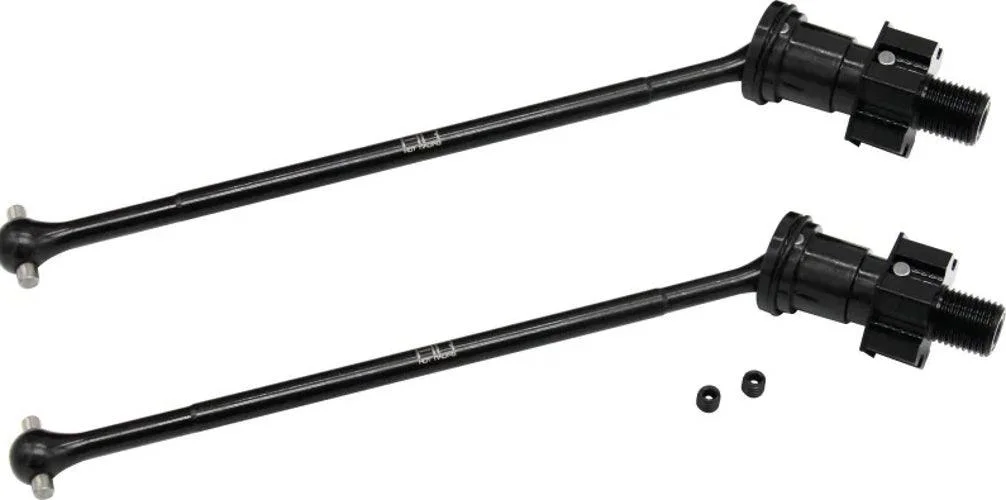

Hot Racing steel CV axle drive shafts with 24mm aluminum wheel hex hubs for the Traxxas X-Maxx 6S and 8S

FEATURES:
– CNC machined hardened steel construction, with tough and corrosion resistance black finish
– CNC machined 6061-T6 aluminum 24mm hex hubs, anodized in black
– Hardened 4mm hex hub drive pins

YOU WILL RECEIVE:
– Two (2) assembled CVD axles
– Two (2) 24mm hex hubs with M12 wheel nut threads
– Two (2) 4x21mm drive pins
– Two (2) M5x5mm setscrews (thread into axle stub to secure drive pin)

REQUIREMENTS:
– 2.5mm hex wrench for axle setscrews
– Removable thread lock (e. g. blue Loctite) on axle set screws
– Light grease for CV joints helps maintain their longevity

SPECIFICATIONS:
– Overall length: 210mm
– Dogbone length pin to pin: 160mm
– Dogbone pin diameter: 3.5mm
– Hex size: 24mm
– Weight: 95 grams/ea
