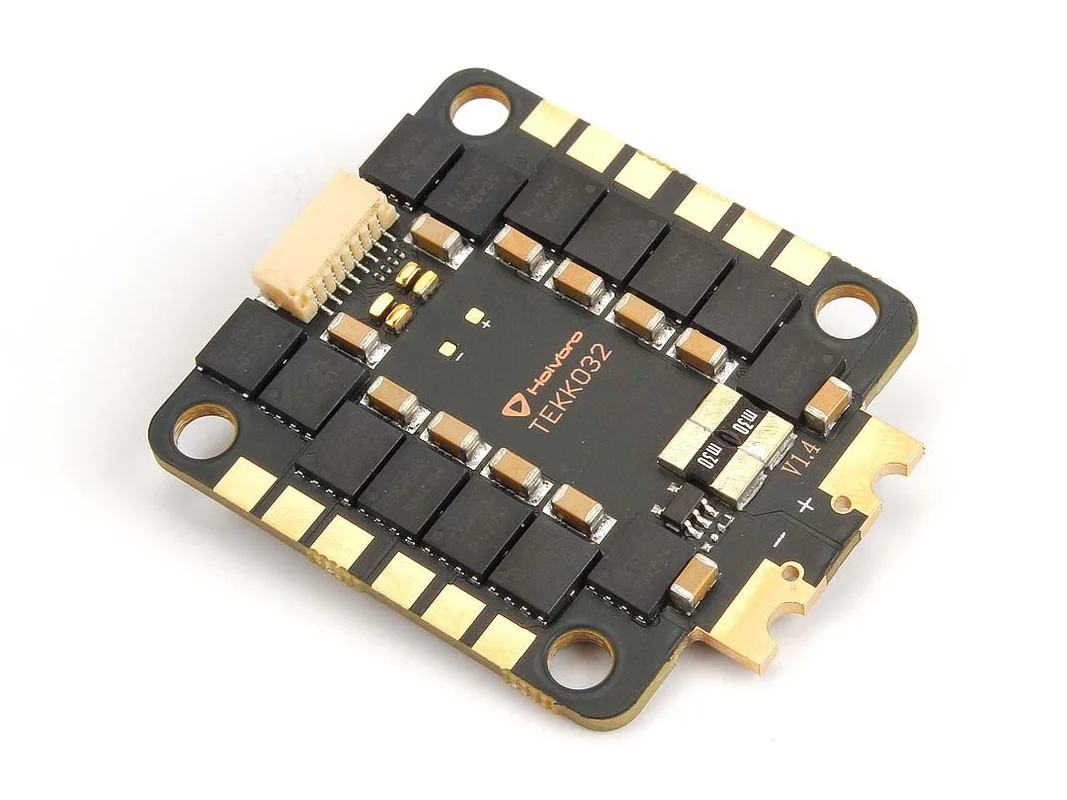

Holybro Tekko32 F4 4-In-1 45A ESC

Description

** Discontinued – New Version Here **

Holybro’s popular Tekko32 4-In-1 45A ESC has been updated – now with a F4 MCU for faster response time and smoother performance.

Specifications:

• F4 MCU, double the speed of F051
• 32bit ESC with BLHELI32 firmware
• Maximum PWM output upto 128K (default 96K)
• Supports 3-6S lipo input
• PWM input, TLM supported
• Voltage output (VBAT)
• No output BEC
• Supports oneshot / Multishot / Dshot / PWM
• Supports damped light
• Extra capacitor needed for high current or 6s usage
• Dimensions: 44x37x6mm
• Mounting holes 30.5×30.5mm(M4)
• Weight: 13.3g

Pinout:

Includes:
1x Holybro Tekko32 F4 4-In-1 45A ESC
4x M3 Anti-Vibration Silicone Grommets
1x Electrolytic Capacitor – 1000uF 35V
1x 8pin to 8pin 1mm pitch 65mm Cable
1x 8pin to 8pin 1mm pitch 25mm Cable

Download Spec Sheet
