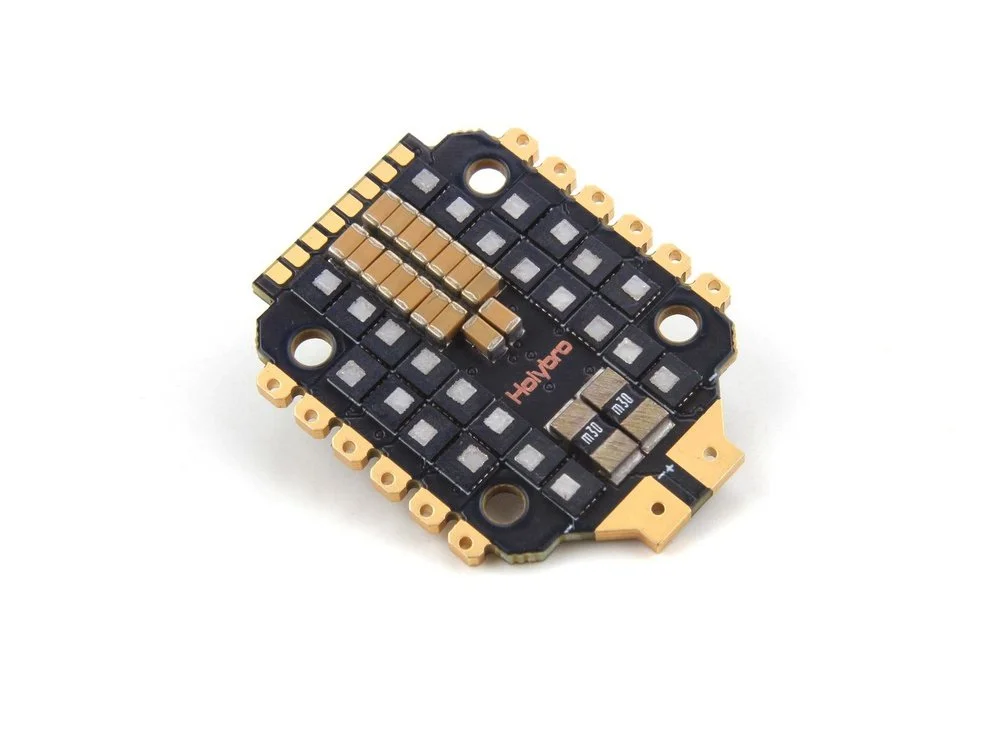

Holybro Tekko32 F3 4-In-1 45A Mini ESC

Description

** Discontinued – New Version Here **

A 45Amp, 20×20 4-In-1 ESC featuring BLHeli_32, F3 MCU, and can withstand voltage up to 80V.  This is the first ESC with a default PWM output of 96K, giving you a smoother, more quiet experience. Another great product from Holybro.

Specifications:

• F3 MCU, runs double faster than F051
• 32bit ESC with BLHELI32 firmware
• Supports 3-6S lipo input
• PWM input, TLM supported
• Voltage output (VBAT)
• NO BEC
• Supports oneshot / Multishot / Dshot PWM
• Supports damped light
• Ext. cap needed for 6s (1000uf 35v for 6s usage.)
• Mounting holes M3, 20x20mm
• Size:30 x 38 mm
• Weight: 7.6g

Pinout:

Includes:
1x Holybro Tekko32 F3 4-In-1 45A Mini ESC
4x M2 Anti-Vibration Silicone Grommet Insert
1x Electrolytic capacitor: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
