Description

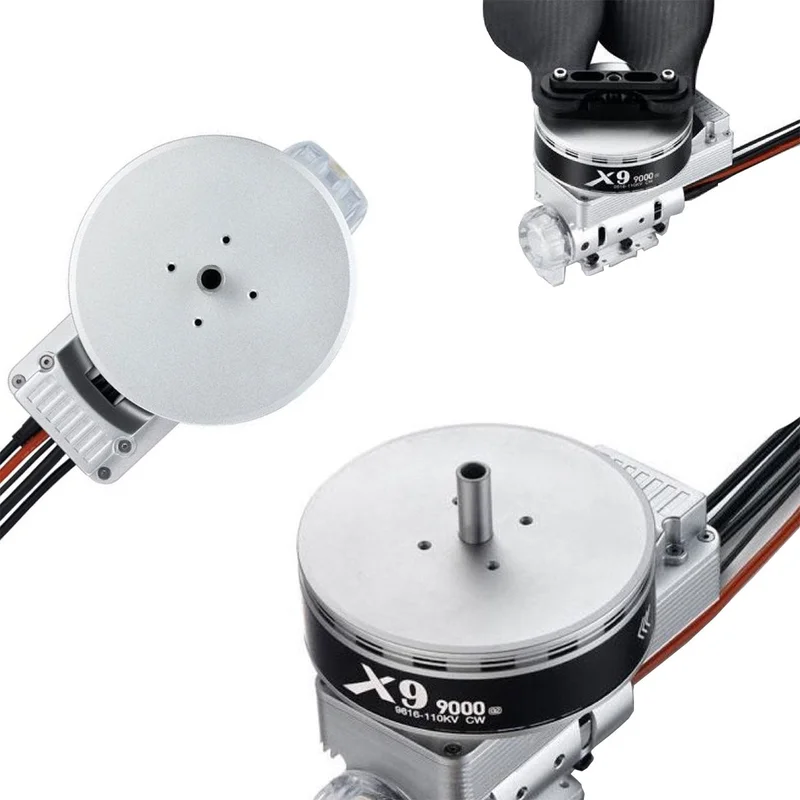

Hobbywing Xrotor X9 brushless motor
This product is designed and used for Agricultural application or logistics transportation.
The Hobbywing Xrotor X9 brushless motor system is a plant protection power system that adapts to uniaxial 7-9.5kg load. The maximum pulling force of uniaxial is 19.2kg. integrated with a 40mm carbon fiber tube arm. The waterproof grade is IPX7. It is resistant to rainwater. pesticides. salt spray. high temperature. sand and dust. impact. mud. and soil. ESC FOC-motor PMS system has optimized computing. with multiple protection functions such as power-on self-check. power-on voltage abnormal protection. overcurrent protection. lock-up protection and etc. as well as real-time data transmission.
Additional information
| Weight | 2 kg |
|---|---|
| XRotor X9 system |
CCW(UART). CW(UART) |
| Model | X9 Power System Combo RTF (Prop is not included) |
| p/n | 38040311 (30410030023) / 38040312 (30410030024) |
| Max Thrust | 19.2kg/Axis (46V. Sea Level) |
| Recommended LiPo Battery | 12S LiPo |
| Recommended Takeoff Weight | 7-9.5kg/Axis (46V. Sea Level) |
| Product Weight (ESC/Motor/Prop) | 1400g |
| Waterproof Rating | IPX7 |
| Operating Temperature | -20-55℃ |
| Motor | |
| Stator size | 96*16mm |
| KV Rating | 110KV |
| O.D of Carbon Fiber Tube | φ40 |
| Bearing | Imported Waterproof Bearing |
| ESC | |
| Recommended LiPo Battery | 6-12S LiPo |
| PWM Input Signal Level | 3.3V/5V (Compatible) |
| Throttle Signal Frequency | 50-500Hz |
| Operating Pulse Width | 1100-1940 μs (Fixed or cannot be Programmed) |
| Max. Input Voltage | 52.2V |
| Max. Input Current (Cont.) | 120 A (w/ Good Heat Dissipation) |
| Max. Peak Current (10s) | 150 A (w/ Good Heat Dissipation) |
| BEC | No |
| Nozzle Mounting Holes | φ40mm |
| Recommended Propeller | |
| Diameter×Pitch | 34.7×11 inch |
| Weight | – |
IMPORTANT NOTE;
The series is designed for Agricultural application or logistics transportation. Farmland. Agricultural UAV features high thrust. heavy loaded. good anticorrosive and antitrust performance. Due to heavy motor/ESC. its thrust effect is lower compared to aerial photography UAV. It focuses on the durability and long term reliability. In contrast. Aerial photography UAV features a high thrust effect. It requests highly on reliability and stability than plant protection UAV. Due to lightweight motor / ESC. it is not recommended to use it in a severe / harsh environment.
