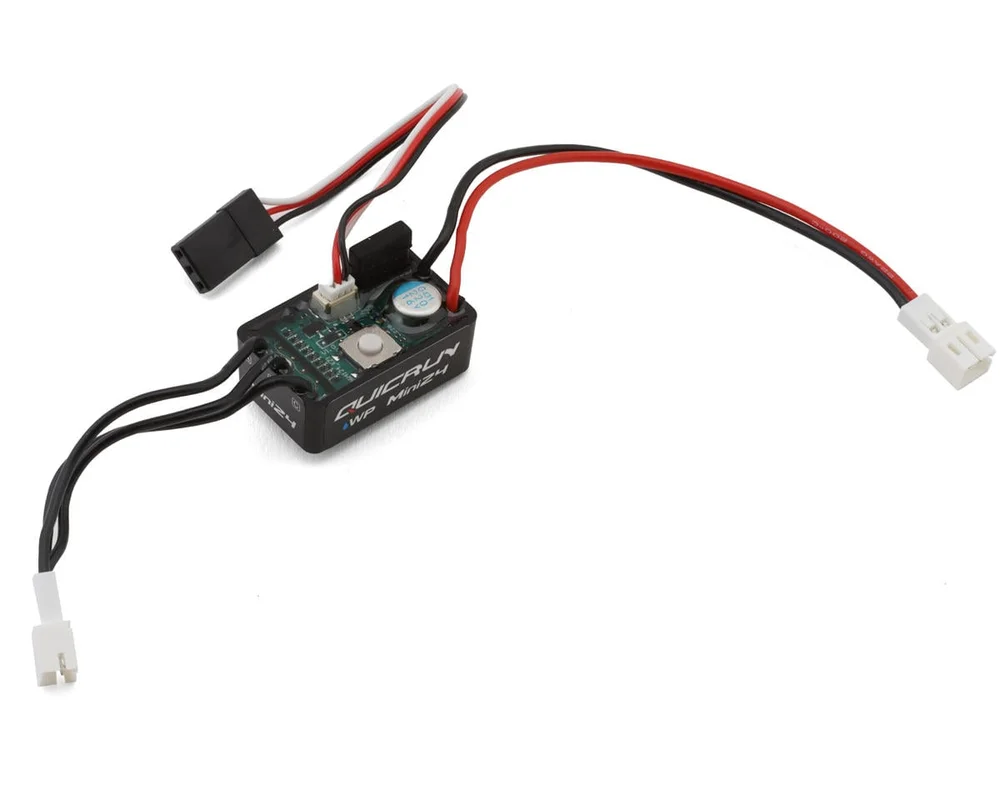

Hobbywing Quicrun Mini24 Waterproof Brushless ESC

Description

ESC Overview:

This is the Quicrun Mini24 Waterproof Brushless ESC from Hobbywing. Featuring a fully waterproof design, this ESC supports both sensorless brushless motors and brushed motors, offering versatile performance across various RC setups. Paired with advanced protection features and adjustable drag brake force, it ensures reliable and smooth control in all conditions. Ideal for 1/24 rock crawlers where precision and smooth operation are key to conquering rough terrain this ESC is a must have for serious enthusiasts.

Features:

• Supports sensorless brushless and brushed motors
• Fully waterproof for all-weather reliability
• Switchable BEC voltage for high-torque servos
• Multiple protection features for enhanced safety
• Real-time drag brake adjustment via AUX channel

Specifications:

Suggested Application: 1/24 Crawler
Motor Type: Sensorless Brushless/Brushed
Input Voltage: 2-3S LiPo
Continuous Current: 25A
Peak Current: 60A
Dimensions (LxWxH): 0.03×0.018×0.012in (28.1×17.9x12mm)
Weight: 0.38oz (10.8g)
Motor Limits: Brushless (1621/1212/1806) or Brushed (050/130/180)
BEC Voltage: 6/7.4V adjustable
BEC Current: 2A
Motor Connector: –
Battery Connector: –
Throttle Wire: Servo Wire
Programming: Button / Remote Program Box

Includes:

• (1) Quicrun Mini24 Waterproof ESC

This product was added to our catalog on October 3, 2024
