Description

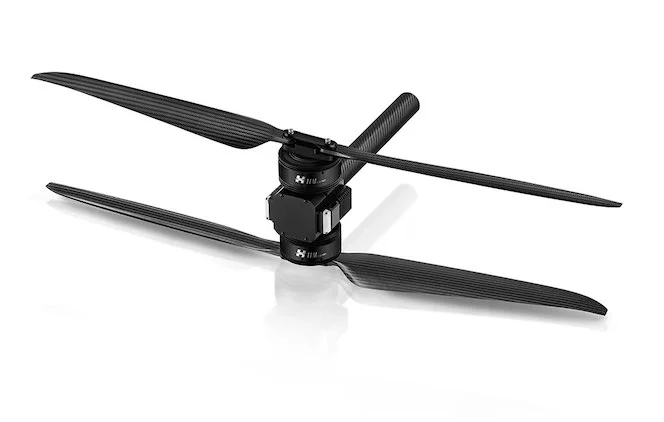

Hobbywing H11M Specifications
| Specifications |
|
||||||||||||||||||||
| Motor |
|
||||||||||||||||||||
| ESC |
|
||||||||||||||||||||
| Propeller |
|
Details
H11M Motor CAD
H11M Coaxial Motor dimensions: 120.1mm diameter. 4-M5-6H EQS. 36mm. 4-M4-6H-EQS. 31mm. tube out diameter 50mm. 90mm width. 136mm length. 220mm height.
H11M Techenical Parameters
|
Voltage(V) |
Propeller(Inch) |
Throttle(%) |
Thrust(g) |
Current(A) |
Power(W) |
Efficiency(%) |
Efficiency(g/W) |
|---|---|---|---|---|---|---|---|
|
54V (14S LiPo) |
48*17.5″ |
32% |
7464 |
12.2 |
659.1 |
68 |
11.3 |
|
34% |
8465 |
13.8 |
747.2 |
70 |
11.3 |
||
|
36% |
9379 |
14.2 |
769.1 |
75 |
12.2 |
||
|
38% |
10406 |
15.1 |
813.8 |
79 |
12.8 |
||
|
40% |
11633 |
17.0 |
920.7 |
81 |
12.6 |
||
|
42% |
13072 |
20.3 |
1097.7 |
80 |
11.9 |
||
|
44% |
14692 |
24.7 |
1334.8 |
80 |
11.0 |
||
|
46% |
16448 |
29.9 |
1614.2 |
80 |
10.2 |
||
|
48% |
18295 |
35.5 |
1918.2 |
80 |
9.5 |
||
|
50% |
20200 |
41.3 |
2234.0 |
82 |
9.0 |
||
|
52% |
22146 |
47.3 |
2556.1 |
84 |
8.7 |
||
|
54% |
24139 |
53.4 |
2887.0 |
85 |
8.4 |
||
|
56% |
26198 |
59.9 |
3236.8 |
87 |
8.1 |
||
|
58% |
28354 |
67.0 |
3621.0 |
88 |
7.8 |
||
|
60% |
30642 |
75.1 |
4057.4 |
88 |
7.6 |
||
|
63% |
34388 |
89.6 |
4845.9 |
87 |
7.1 |
||
|
66% |
38536 |
107.8 |
5824.7 |
86 |
6.6 |
||
|
69% |
43007 |
129.2 |
6983.7 |
84 |
6.2 |
||
|
72% |
47563 |
152.7 |
8251.9 |
83 |
5.8 |
||
|
75% |
51814 |
175.7 |
9496.8 |
82 |
5.5 |
||
|
78% |
55276 |
195.1 |
10543.1 |
82 |
5.2 |
||
|
100% |
57481 |
207.0 |
11183.7 |
82 |
5.1 |
