Description

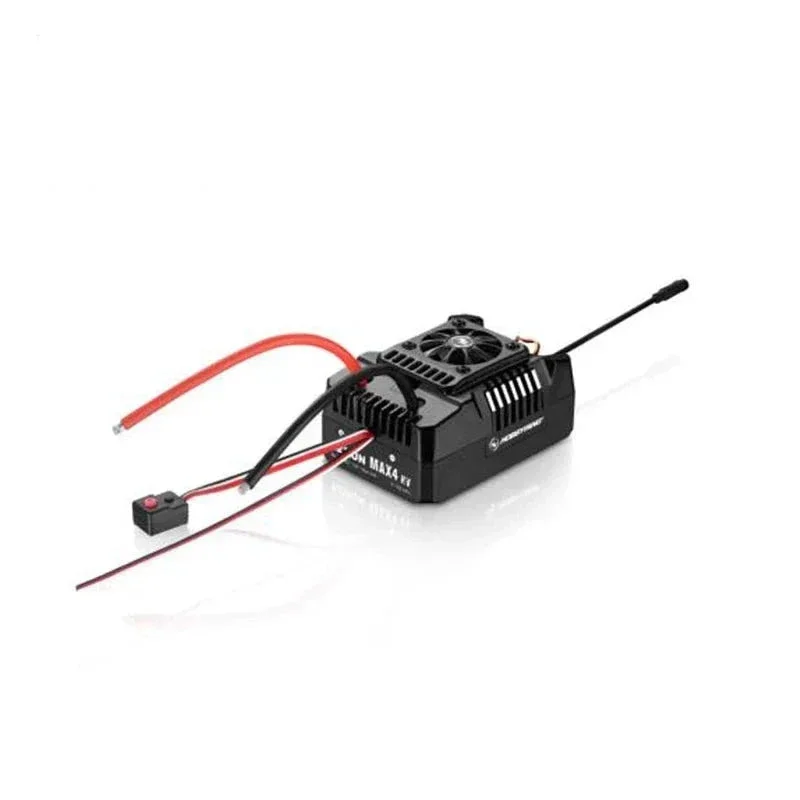

Hobbywing EZRUN MAX4 HV 300A ESC SPECIFICATIONS

Brand Name: Hobbywing

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Speed Controllers

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: ESC

Quantity: 1 pcs

Model Number: EzRun Max 4 HV

EZRUN MAX4 HV Product Number 30104002 Type Scale 1/sth Brushed/Brushless BL Sensored/Sensorless SD Waterproof WP Specifications Cont /Peak Current 30OA/2OO0A Input Voltage 6-12S Lipo BEC Output 6V/ 7.4V/ 8.4V adjustable; continuous current IOA (Switch-mode) Wires & Connectors

ESC has a strong output power with exce lent linearity at low speed and operatina full-sensored mode Aggressive launch High speed ‘the straight line Flying slopes EZRI IAX4 Kv 6-128 Lipc Sensored Mode Powerful Extremely powerful and extremely low temperature .

The ESC features an integrated Battery Eliminator Circuit (BEC). which can supply a maximum output current of 10A. Additionally. it supports standard wire interfaces on the market and boasts an IP67-rated waterproof design for extended lifespan.
