Description

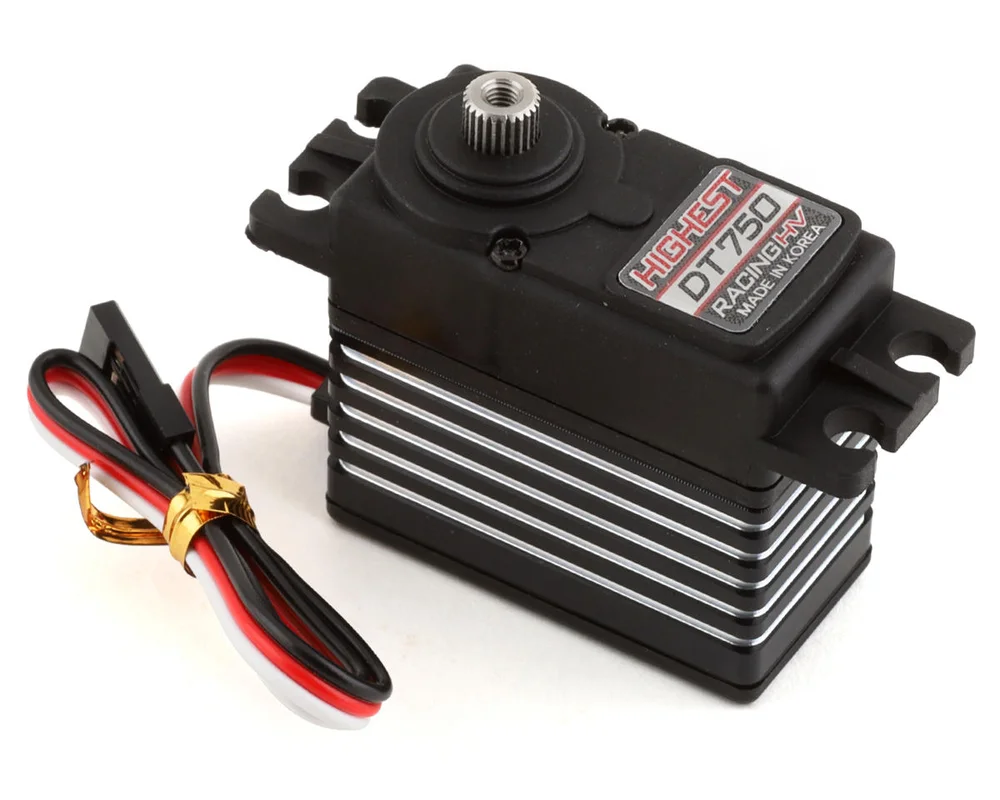

Highest DT750 “High Speed” Metal Gear Coreless Servo. This servo is designed both surface and air applications. The full metal gear drivetrain, double ball bearing design and coreless motor allows for increased precision and durability. Built in a standard size case, this servo will be right at home in your application.
Features:
- Full metal gears
- Standard size servo with aluminum center band
- High voltage capable
- Coreless design
Specifications
- Operating Voltage: 6.0-7.4V DC
- Speed:
- 6.0V: 0.12 sec/60°
- 7.4V: 0.09 sec/60°
- Torque:
- 6.0V: 191.64oz-in (13.8kg-cm)
- 7.4V: 224.97oz-in (16.2kg-cm)
- Operating Temperature: 14-140° F (-10-60° C)
- Dimension: 1.55×0.78×1.51in (39.5×20.0x38.6mm)
- Weight: 2.17oz (61.6g)
CA Residents Prop 65 Warning WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details…
This product was added to our catalog on January 3, 2023
Reviews
There are no reviews yet.
