Description

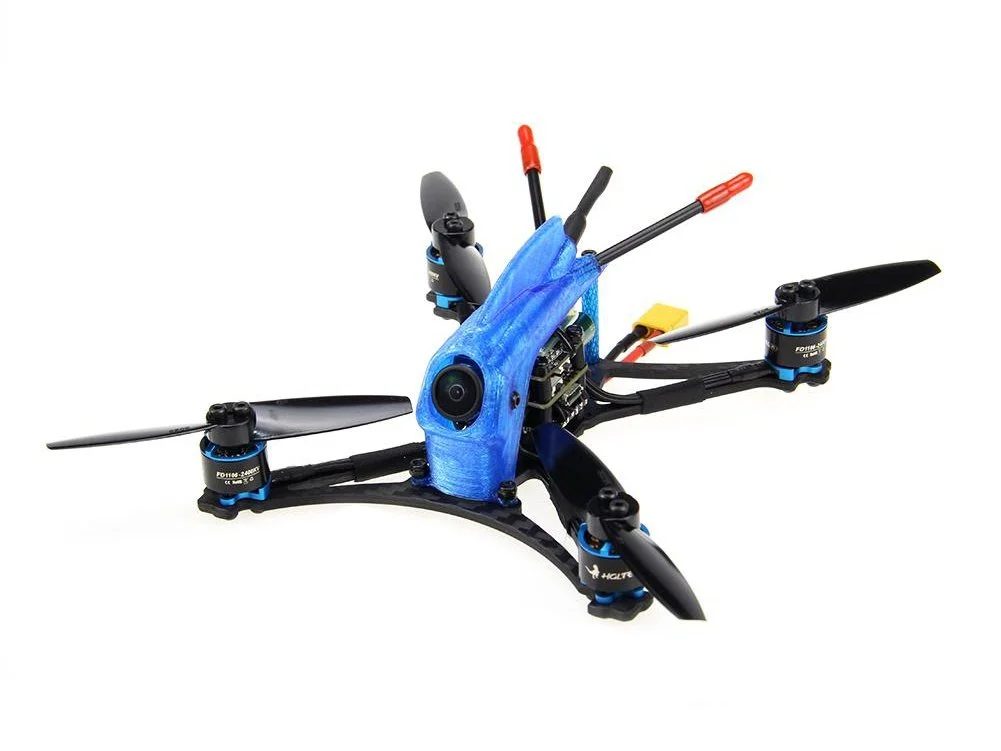

The HGLRC Petrel132 is a 3″ Toothpick FPV drone that screams through the air. It’s fast, and a ton of fun when combined with a 6s battery. Get 10+ minutes of flight on a 300-550mAh 6S LiPo. Perfect for tight tracks or hitting small gaps.
Just add your own receiver and get in the air.
Specifications:
- Petrel132 Frame Kit
- Frame Wheelbase: 132mm
- FD411 Flight Controller
- FD13A 4in1 BLS 3-6S ESC
- FD1106 2400KV Brushless Motor
- FD VTX Micro 400mW
- Caddx.us Turbo Eos v2 FPV Camera
- Gemfan 3025 3Inch 2-Blade Propeller
- Weight:77.2g
Petrel132 Frame Kit:
- Material: Carbon Fiber
- Model： PETREL
- Wheelbase：132mm
- Type: 3″ Frame
- Arm Thickness: 2.5mm
- Standoff Height: 23mm
- Flight control installation holes: 16*16/20*20mm
- Support camera: 14X14mm
- Weight: 18g
HGLRC FD411 Flight Controller
- Item Name:FD411 Flight Controller
- MPU:MPU6000-SPI
- CPU:STM32F411CEU6
- Black Box:NO
- Input Voltage:3-6S Lipo
- Built-in Betaflight OSD to adjust PID
- BEC Output:5V/2A
- Size:21x21mm
- Installing Hole:16x16mm, M2
- Support SBUS/PPM/DSMX/iBUS receiver
- Weight:2.7g
HGLRC FD13A 4in1 BLS 3-6S ESC
- Item Name:FD13A 4in1 3-6S ESC
- Input Voltage:3-6S Lipo
- Constant Current:13A
- Peak Current:15A(5s)
- BEC Ouput:NO
- Size:23x24mm
- Installing Hole:16x16mm, M2
- Weight:3.2g
- CPU:SILABS EFM8BB2 48MHZ
- MOS Tube:TOP QUALITY MOSFET
- Support Damped Mode:DSHOT600/300/150/Oneshot125/42,MultiShot,PWM
Runcam Nano 2 FPV Camera (Note: Old Version uses Caddx.us Turbo Eos2 )
- Image Sensor: 1/3″ CMOS
- Horizontal Resolution: 700TVL
- Lens: 2.1mm(M8) FOV 155° 1.8mm (M8) FOV 170°
- Signal System: NTSC / PAL
- S/N Ratio: >50dB
- Electronic Shutter Speed: Auto
- Auto Gain Control (AGC): Auto
- Min. Illumination: [email protected]
- D-WDR: Auto
- Day/Night: Color
- Power: DC 3-5.5V
- Current : 110mA@5V [email protected]
- Housing Material: ABS
- Net Weight: 3.2g
- Dimensions: L14mm*W14mm*H16mm
FD1106 2400KV Brushless Motor
- Motor:KV 2400KV
- Stator Diameter:11mm
- Stator Thickness:6mm
- No.of Stator Arms:9S
- No.of Rotor poles:12P
- Motor Resistance:680mΩ
- Max Continuous Current:5.14A
- Maximum Power:123.2W
- No.of Cells(Lipo):18.5-25.2(5-6S)
- ESC:>10A
- Recommended Prop(inch):2-3Inch
- Wire type:28AWG x 80mm
- Weight:7.2g
Includes:
1x HGLRC Petrel132 3″ Toothpick FPV Racing Drone 5-6S PNP
1x FD411 Flight Controller
1x FD13A 4in1 BLS ESC
1x 1x Zeus 350mw VTX
4x FD1106 2400KV Brushless Motor
1x Rncam Nano 2 FPV Camera
6x Gemfan 3025 propeller
1x IPEX Antenna
Download Manual
