Description

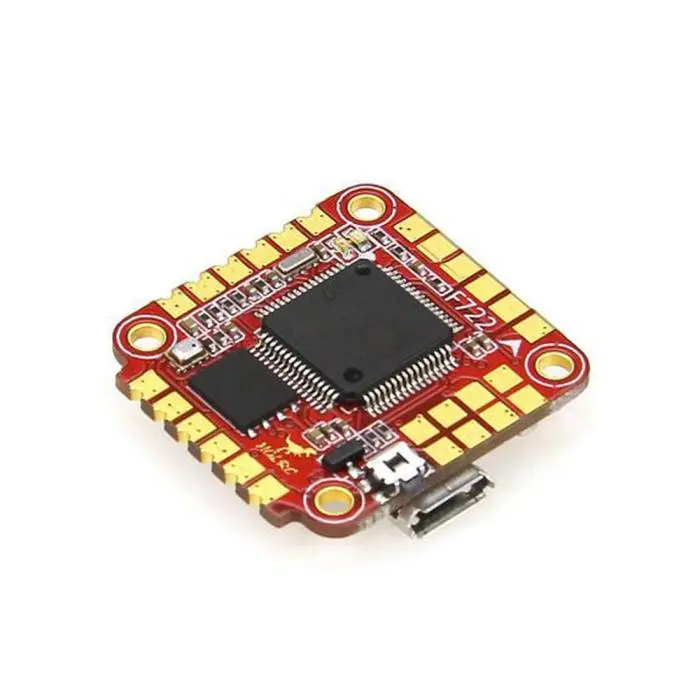

Forward F722 Mini 2-6S 20×20

Unleash the full potential of your FPV drone with the HGLRC Forward F722 Mini, a feature-packed flight controller in a compact 20x20mm form factor. Built around a powerful STM32F722 processor, this FC delivers top-tier performance, providing plenty of processing headroom for complex filtering, GPS rescue, and other demanding tasks without breaking a sweat. It’s the perfect brain for any high-performance freestyle, cinematic, or long-range build.

The Forward F722 Mini is designed for connectivity and convenience. With 5 available UARTs, you’ll never have to compromise on peripherals—connect your receiver, VTX, GPS, camera controls, and more with ease. Key features include an onboard barometer for accurate altitude data and a generous 16MB black box for detailed flight logging, making it simple to fine-tune your quad for a perfectly locked-in feel. The robust 5V/3A BEC ensures all your components receive stable, clean power.

Engineered with the builder in mind, this flight controller features a thoughtful layout with easy-to-solder pads for popular receivers like the XM+ and Crossfire Nano. For digital FPV pilots, an available DJI version offers a dedicated port for a simple, solder-free connection to your DJI Air Unit.

Key Features:

• Powerful F722 Processor: The high-speed STM32F722 CPU delivers top-tier performance with low CPU load, even with multiple features enabled.
• 5 Available UARTS: Offers extensive connectivity for GPS modules, receivers, VTX control, and other peripherals.
• Onboard Barometer & 16MB Blackbox: The barometer provides accurate altitude data, while the 16MB blackbox allows for detailed flight logging for easy tuning.
• Plug-and-Play DJI Ready: The optional DJI version includes a dedicated port and cable for a simple, solder-free connection to your DJI Air Unit or Caddx Vista.
• Robust 5V/3A BEC: Provides ample, clean power for all your components, including power-hungry VTX and GPS modules.
• Reliable MPU6000 Gyro: Equipped with the trusted MPU6000 for clean, accurate flight data.

Please Note: This flight controller is available in two versions. Please select your desired version from the options menu. The DJI version includes a dedicated port and cable for the DJI Air Unit.

Specifications:

• CPU: STM32F722 RET6
• MPU (Gyro): MPU6000
• Input Voltage: 2-6S Lipo
• BEC Output: 5V/3A
• UARTS: 5
• BlackBox: 16MB
• Barometer: Integrated
• Mounting Holes: 20x20mm, M2
• Weight: 3.7g

Includes:

• 1 x Forward F722 Mini Flight Controller
• 5 x M3 Shock-absorbing Grommets (Red)
• 5 x M3 to M2 Stack Mount Adapters
• 1 x SH1.0 8-Pin Cable (60mm)
• 1 x DJI Air Unit Port Cable (90mm) (Included with DJI Version Only)
