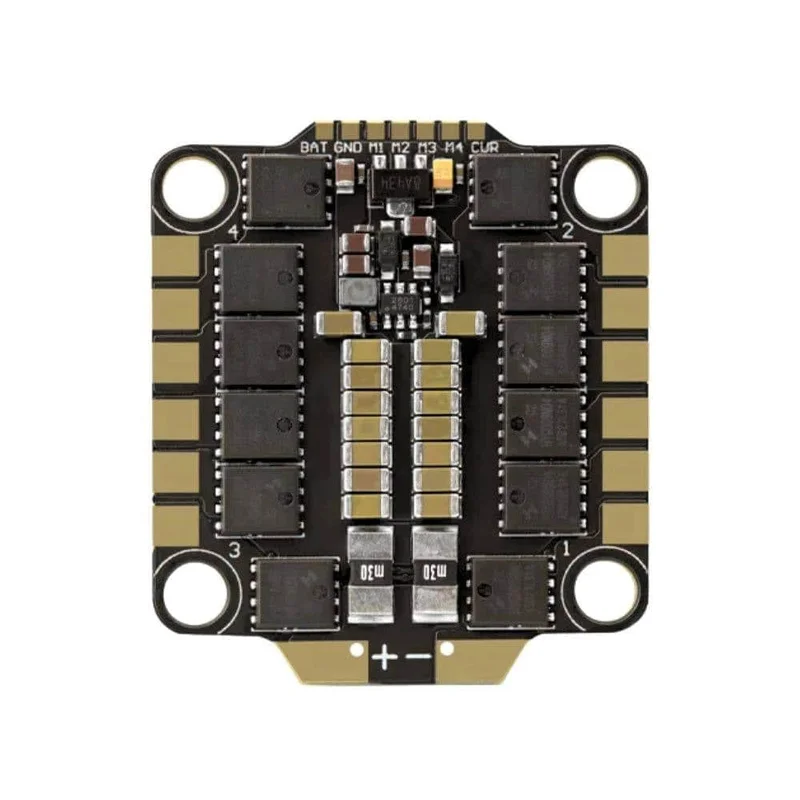

HGLRC 60A V1 2-6S BLHeli_S 4-in-1 ESC – 30.5×30.5

Description

The HGLRC 60A V1 ESC is a compact 4-in-1 speed controller built for reliable 2–6S performance. With 60A per channel output and a lightweight 14g design, it delivers smooth power for freestyle and racing builds while fitting standard 30.5mm mounting patterns.

 Check out our other 30×30 ESCs and all our HGLRC products!

Features

• 30.5×30.5mm M3 mounting pattern (37x43mm board size)
• 2–6S input voltage (7.4V–25.2V)
• 60A rated current per channel
• 190A maximum combined output
• Q-H-40 ESC firmware

Specifications

• Operating Current: Rated current per channel 60A, Four-way maximum current 190A
• Input Voltage: 7.4V-25.2V (2S-6S)
• Mounting Hole: 30.5×30.5mm, M3
• Dimensions: 37mmx43mm
• ESC Firmware: Q-H-40
• Weight: 14g

Includes

• 1x HGLRC 60A V1 2-6S BLHeli_S 4-in-1 ESC – 30.5×30.5
• 1x 30AWG 25mm Double-ended SH1.0-8P Ribbon Cable
• 1x 12AWG 100mm Power Cable (black/red)
• 1x 50v 470UF Solid-state Capacitor
• 1x XT60H-M Male Connector
• 1x HGLRC 2023 Sticker
• 4xRubber Grommets
• 1x QR Code Card
