HDZero Whoop Lite VTX w/ Race Camera

Description

We likely won’t be stocking this bundle anymore.

Demand is high for these items instead:

– HDZero Whoop Lite VTX

– HDZero Nano 90 FPS Camera

Introducing the HDZero Whoop Lite, the world’s first production digital FPV solution weighing in at only 7g. Designed to meet the needs of feather-lite drones where every gram counts, the HDZero Nano Lite Camera and Whoop Lite VTX combo brings digital video to 1S tiny whoops for the first time.

Specifications

Whoop Lite VTX

• Model: HDZero Whoop lite Bundle
• SKU: HDZ3101
• Frequency: 5.725-5.850GHz
• Resolution: 1280*720@60fps
• RF power: 25mW/200mW RF output
• RF Connector: U.FL
• Video Connector: MIPI
• FC protocol: Smart Audio Support/MSP
• Size: 32.5×32.5mm (29x29mm inner)
• Weight: 4.5grames/4mm Thickness (w/o shielding)
• Power: 7W
• Power input: 1S-3S
• Mounting: 25.5×25.2 M2 soft mounting

Nano Lite Camera

• Size: 14x16x11mm
• Weight: 1.5gram
• Sensor: 0.5 inch, up to 10650 mV/Lux-sec, Ultra-high sensitive CMOS sensor
• FOV:
  • 4:3 D:130° H:108° V:84°
  • 16:9 D:122° H:108° V:65°

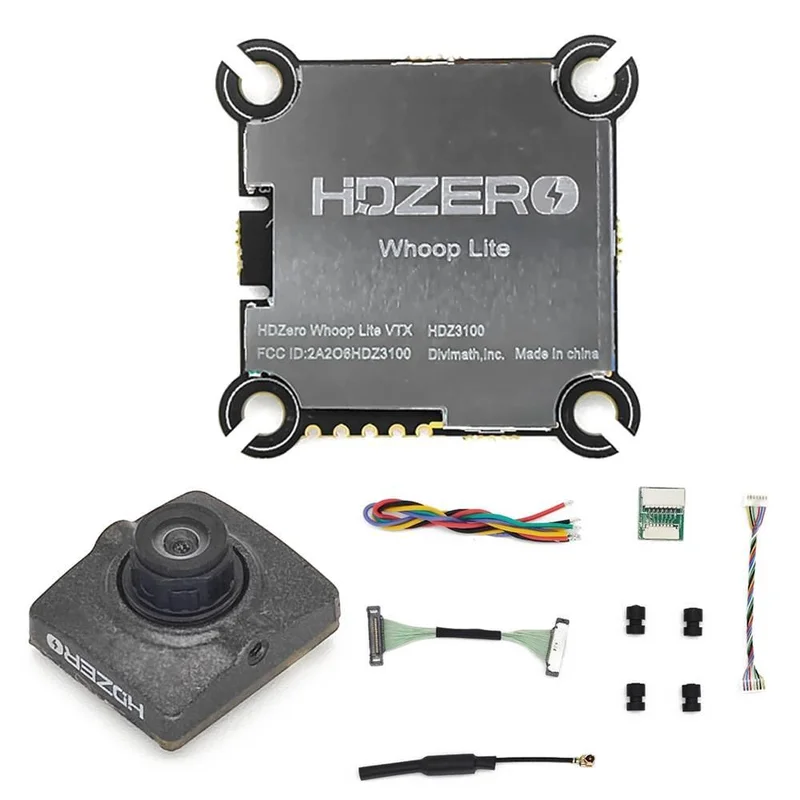

Includes

• HDZero Whoop Lite VTX * 1
• HDZero Nano Lite Camera * 1
• Dipole Antenna * 1
• 40mm Mipi Cable * 1
• Power/Uart Cable * 5
• Zip ties * 2
• Rubber Grommet (M3 to M2) * 4
