Description

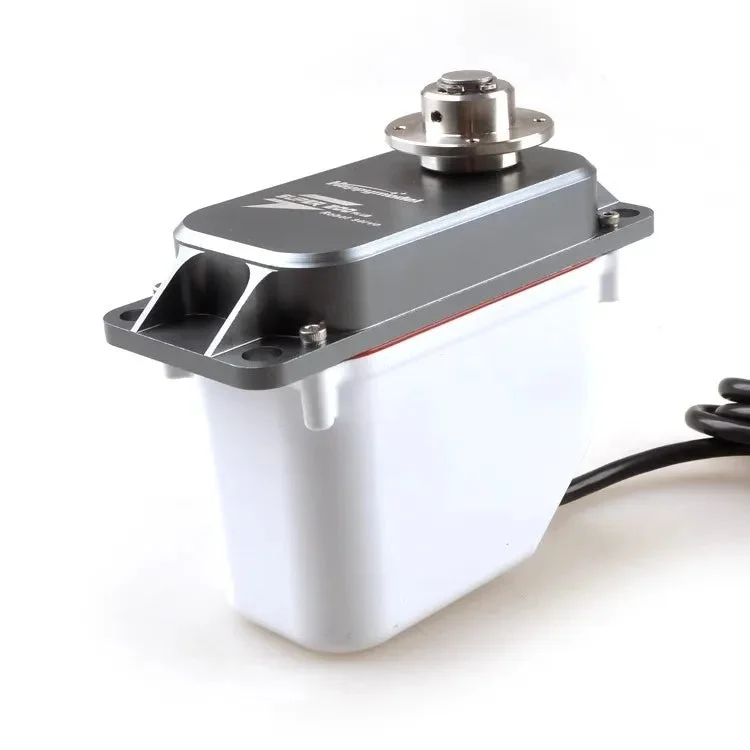

Happymodel Super200 Super400 Plus 200kg / 400kg High Torque Metal Servo 12V-24V

SPECIFICATIONS

Brand Name: KINGMODEL

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

Recommend Age: 6-12y

RC Parts & Accs: Servos

Size: Super 200 Super400

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Certification: CE

Certification: RoHS

Certification: NONE

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Servos

Tool Supplies: Putty class

Quantity: 1 pcs

Technical parameters: Value 3

Model Number: Happymodel Super 200 Super400

Four-wheel Drive Attributes: Motors

Wheelbase: Screws

Happymodel 200kg / 400kg High Torque Metal Servo Steering Gear Super200 400 Plus Suitable for 12V-24V Large Robot Arm DIY Models

Tips: Disassemble the servo. adjust the servo control board to change the angle range

Super200:

Voltage: 12V-24V (recommended battery power. can be customized if high voltage is required)
Speed (no load): 24v about 0.46s/60°
Maximum torque: 200kg.cm
Rated torque: 70kg.cm
No-load current: <0.15A
Stall current: 24v: <11A
Input signal: PWM: 800us ~ 2200us. 50-400Hz
Operating angle range: adjustable: minimum ± about 60 °. up to about ± 300 °
Weight: 759g
Length. width and height: 132*55*116mm
Application: Industrial robot arm
Product included;
200kg high torque metal steering gear *1
Accessories Kit*1

Super400:

Voltage: 12V-24V (recommended battery power. can be customized if high voltage is required)
Speed (no load): 12v about 0.74s/60° 24v about 0.37s/60°
Maximum torque: 400kg.cm
Rated torque: 140kg.cm
No-load current: <0.1A
Stall current: 12v: <7A 24v: <14A
Input signal: PWM: 800us ~ 2200us. 50-400Hz
Operating angle range: adjustable: minimum ± 30 °. maximum ± 150 °
Weight: 766g
Length. width and height: 132*55*116mm
Application: Industrial robot arm
Product included;
400kg (or 200kg) high torque metal steering gear *1
Accessories Kit*1

HappyModel Super 200/400 Plus Servo – High-Torque Metal Servo with PWM Control. This servo operates on 12V-24V power. has a torque of 200kg (Super 200) or 400kg (Super 400). and features a high-speed range of 50-400 Hz. Its angular range is 300 degrees. The servo has a high precision and accuracy with a current consumption of less than 0.15A at 24V.

Happymodel Super 200/400 Plus Servo: High-torque metal servo for 12V-24V applications. featuring a high-speed PWM motor with 300-degree rotation and adjustable torque. Capable of handling loads up to 200kg or 400kg. this servo is ideal for various robotics. automation. and hobby projects.

Happymodel Super 200/400 servo features PWM control. high torque metal construction. and operating voltage range of 12V-24V. It has a maximum torque of 200kg (Super 200) or 400kg (Super 400). with a 300-degree rotation.

Robot Hobbyists. Upgrade Your Builds with Happymodel Super Servo. Featuring 12V-24V Power. 200kg/400kg Torque. and 300-Degree PWM Rotation.

HappyModel Super 200/400 Plus Servo is a high-torque metal servo with PWM control. suitable for robots and other applications requiring 12V-24V power and up to 300 degrees of rotation.
