Description

HappyModel HD-S013 Servo  SPECIFICATIONS

Brand Name: zhizicathy

Is Electric: No battery

Origin: Mainland China

Material: Other

Recommend Age: 14+y

RC Parts & Accs: Other

Size: –

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Certification: NONE

Upgrade Parts/Accessories: Other

Remote Control Peripherals/Devices: Other

Tool Supplies: Other

Quantity: 1 pcs

Technical parameters: Value 4

Model Number: HD-S013

Four-wheel Drive Attributes: Other

Wheelbase: Screws

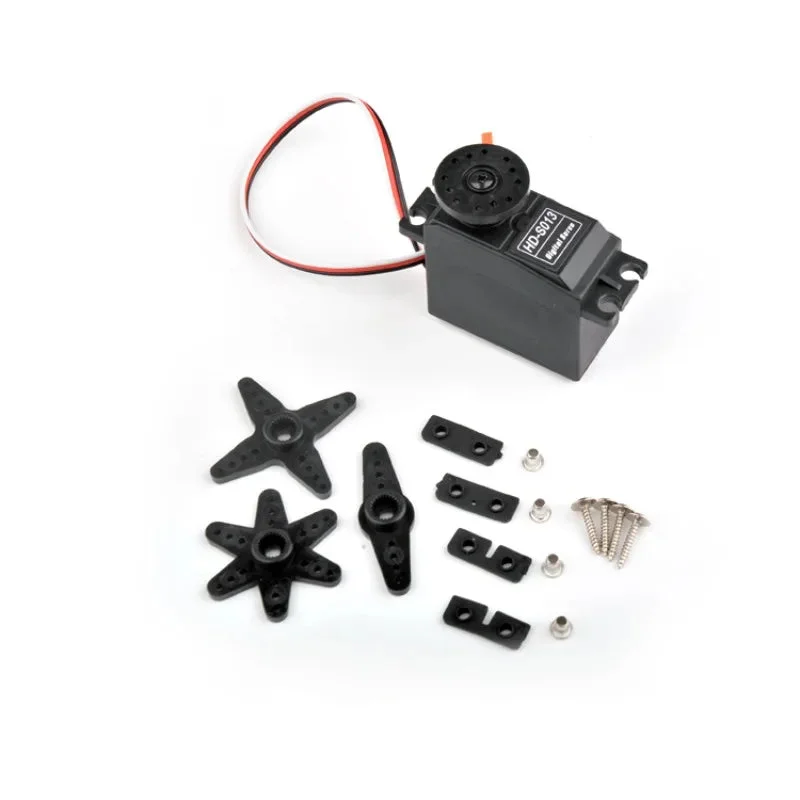

HappyModel HD-S013 13KG Digital 180Degree Servo 5V-8.4V with Universal Plug for JR Futaba RC Airplane Helicopter DIY Parts

Product Model:HD-S013
Product weight:45g
Working voltage: 5V-8.4V
Operating temperature: minus 20 degrees Celsius – minus 60 degrees Celsius
Plug type: universal orange plug
Deadband setting: 4us
Servo type: digital servo.
Use angle: 180 degrees left and right 90 degrees each
Cable length: 30CM PVC material
Use of materials: iron core brush motor. double bearings. POM gears

Operating specifications: 6V/1.188s (no load). 7.4V/0.15s. 8.4V/0.135s. Torque: 9/13kgf cm. Stall current: 0.82A at 6V. 1.0A at 7.4V. 1.1A at 8.4V. Precautions: Turn on radio transmitter before receiver system. and turn off in reverse order. Check servo system for smooth movement before use. Do not let the servo stall or burn out the circuit board. Reverse or modify cables only with caution. as improper changes may cause damage. This servo is suitable for DIY models. but our company is not responsible for any consequences resulting from improper use.

HappyModel HD-S013 servo. a 13KG digital 180-degree servo with universal plug for JR Futaba RC airplane helicopter. suitable for 5V to 8.4V servos.

Product features: 13KG digital servo with 180-degree rotation. suitable for JR/Futaba RC airplanes and helicopters. Universal plug compatible with various models. Please note that improper use or cable changes may cause damage to the circuit board or affect servo performance. Users are advised to follow proper usage guidelines and take necessary precautions when using this product.
