Description
Overview

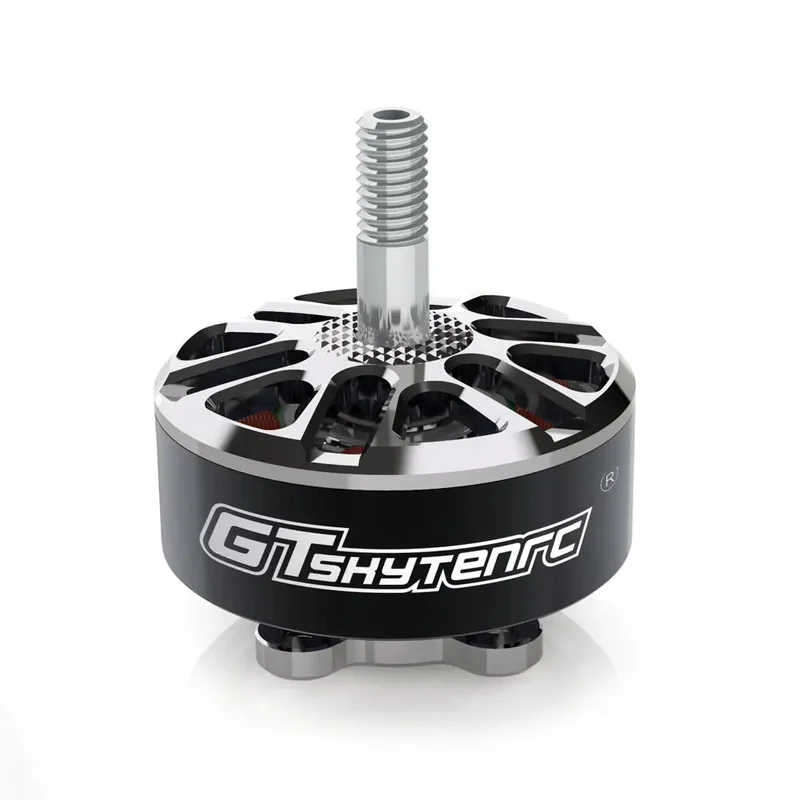

The GTSKYTENRC Tracker 2807 series offers two KV options—1300KV for maximum thrust and efficiency. or 1700KV for snappier throttle response—on a robust 12N14P winding. Designed for 4S–6S LiPo setups. these motors deliver up to 1 400 W (1300KV) or 900 W (1700KV) continuous power. making them ideal for 7″–8″ Mark4 APEX freestyle rigs and long-range LR7 builds. A precision 4 mm steel shaft and lightweight 33.5 × 17.5 mm aluminum housing ensure responsive handling and reliable heat dissipation under heavy loads.
Key Features
-
Dual KV Options:
-
1300KV: 1 400 W max (6S) for high thrust & efficiency (60 mΩ)
-
1700KV: 900 W max (6S) for rapid spool-up & agile control (45 mΩ)
-
-
Wide Voltage Range: Optimized for 4S–6S LiPo batteries
-
Lightweight Design: ~48 g without silicone leads
-
Precision Construction: 12-slot. 14-pole stator; 4 mm hardened steel shaft
-
High Current Handling: Up to 55 A peak on 6S
Specifications
| Parameter | 2807-1300KV | 2807-1700KV |
|---|---|---|
| KV Rating | 1 300 KV | 1 700 KV |
| LiPo Cells | 4 – 6S | 3 – 6S |
| Max. Power (6S) | 1 400 W | 900 W |
| Peak Current (6S) | 55 A | 55 A |
| Internal Resistance | 60 mΩ | 45 mΩ |
| No-Load Current (10 V) | 1 A | 1.9 A |
| Motor Dimensions | 33.5 × 17.5 mm | 33.5 × 17.5 mm |
| Stator/Winding | 12N14P | 12N14P |
| Shaft Diameter | 4 mm | 4 mm |
| Propeller Size | 6″ – 7″ | 6″ – 7″ |
| Lead | 18 AWG. 200 mm | 18 AWG. 200 mm |
| Weight (w/o wires) | 48.6 g | 47.9 g |
Package Included
-
4 × GTSKYTENRC Tracker 2807 Brushless FPV Motor (1300KV/1700KV)
