Description
Overview

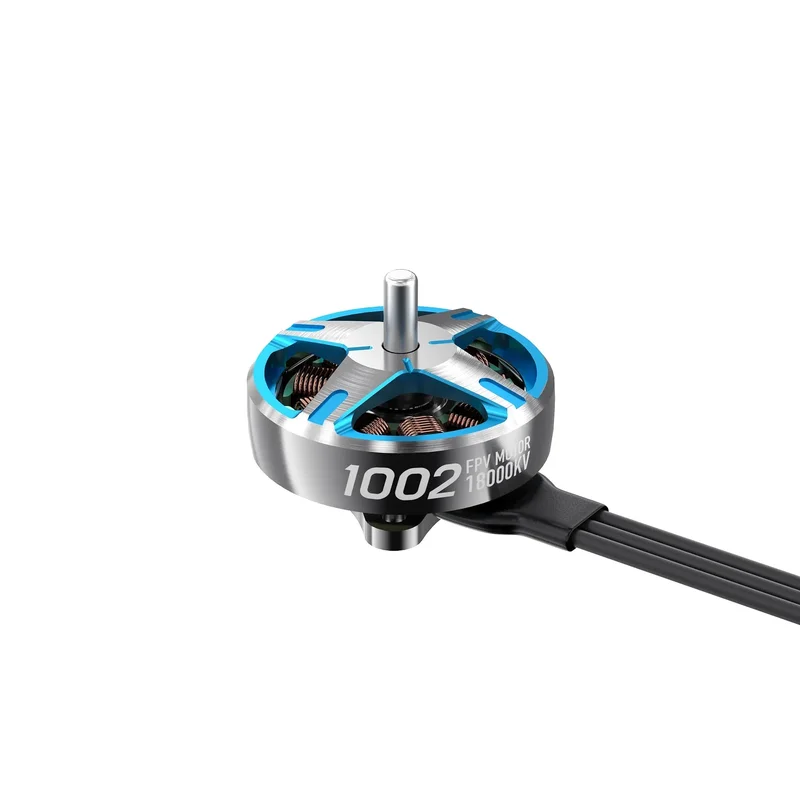

The GEPRC SPEEDX2 1002 Brushless FPV Motor is engineered for high-performance micro FPV builds ranging from 1.6 to 2-inch drones. including freestyle whoops and toothpick quads. With precision CNC machining. lightweight titanium blue anodized bell. and a durable 9N12P stator. this motor delivers powerful. responsive. and smooth performance in an ultra-light 2.5g package.
Available in 25000KV and 18000KV. the SPEEDX2 1002 motor offers flexibility across flight styles — whether you prefer high-RPM punch-outs on 1S or smooth. efficient throttle control on 2S.
Key Features
-
Micro 1002 Brushless FPV Motor for 1.6″–2″ drones
-
Available in 25000KV (1S punch) and 18000KV (1–2S efficiency)
-
9N12P stator design with 415zz bearings for smooth. durable performance
-
CNC-machined bell with titanium blue finish for style and strength
-
1.5mm shaft for secure prop mounting
-
2.5g lightweight with 50mm lead wires
-
Ideal for DIY FPV freestyle and racing setups like the T-Cube18
⚙️ Specifications
| Parameter | 25000KV | 18000KV |
|---|---|---|
| Stator Size | 10mm x 2mm | 10mm x 2mm |
| Configuration | 9N12P | 9N12P |
| Shaft Diameter | 1.5mm | 1.5mm |
| Motor Dimensions | Φ13.69mm × 7.75mm | Φ13.69mm × 7.75mm |
| Lead Wires | 36mm / 28AWG | 36mm / 28AWG |
| Voltage (Lipo) | 1S | 1S–2S |
| Max Power | 58.8W | 41.1W |
| Max Current | 15.9A | 11.1A |
| Recommended ESC | 12A | 12A |
| Mounting Pattern | 6.6mm x 6.6mm (M1.4) | 6.6mm x 6.6mm (M1.4) |
| Weight (with wire) | 2.5g | 2.5g |
| Color | Titanium Blue | Titanium Blue |
📦 Package Includes
-
1 × GEPRC SPEEDX2 1002 Brushless Motor (Choose 18000KV or 25000KV)
-
6 × M1.4 × 3mm Mounting Screws
SpeedX2 1002 Motor: Nimble yet mighty. featuring 25000KV for high performance and efficiency.
SpeedX2 1002 Motor: 18000KV/25000KV. 41.1W/58.8W power. 11.1A/15.9A current. 1-2S/1S voltage. For 1.6-2 inch drones. 2mm stator height. 10mm diameter. titanium blue. 2.5g weight.
Speedx2 Brushless FPV Motor datasheet. Specs for 1002-25000KV and 1002-18000KV types include prop size. voltage. throttle. current. thrust. power. efficiency. and temperature under various conditions.
Speedx2 Brushless FPV Motor 1002. 18000KV. dimensions: 7.75mm. 36mm. 44mm.
