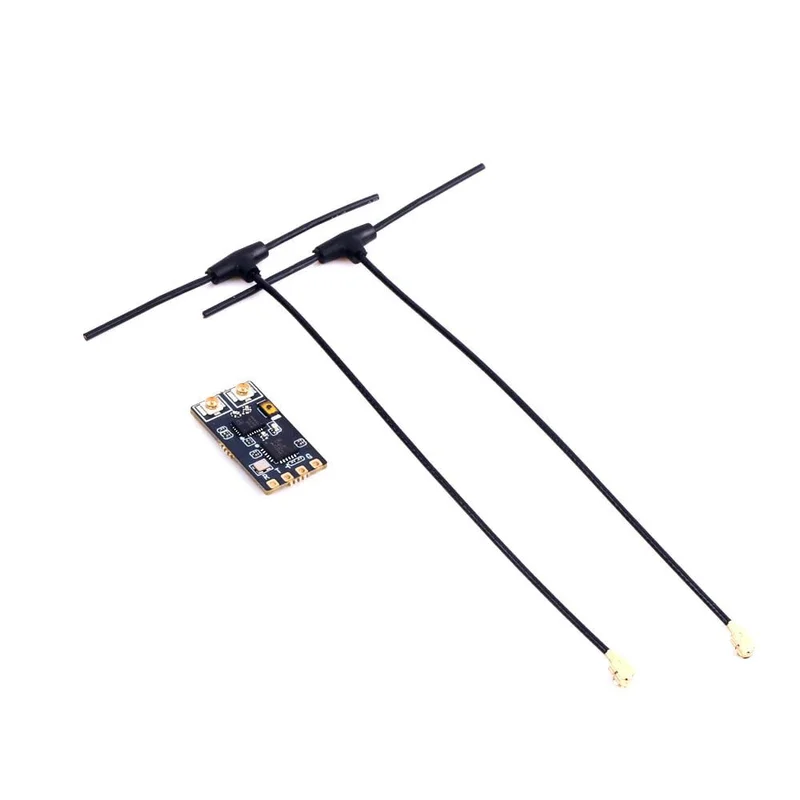

GEPRC Nano PA500 Receiver – ELRS 915MHz

Description

The GEPRC ELRS Nano 915M PA500 Receiver is an advanced ExpressLRS-based receiver. The PA500 is ready fir long-range and has low-latency. Equipped with a TCXO and heat sink to prevent frequency shifts, a high-power PA chip for 500 mW telemetry, built-in WiFi for easy firmware updates.

Check out our other great receivers, as well as the rest of our GEPRC selection.

Features

• Temperature-Compensated Crystal Oscillator (TCXO)
• ELRS Open-Source Compatibility
• Enhanced Heat Dissipation
• WiFi Firmware Upgrade
• Compact Size
• Lightweight

Specifications

• Model: GEPRC ELRS Nano 915M PA500 Receiver
• Frequency Band: 915 MHz (FCC) / 868 MHz (EU)
• Firmware: GEPRC Nano 915M PA500 RX
• Dimensions: 13 x 23 x 5.5 mm
• Refresh Rate: 25 Hz – 200 Hz
• Antenna Connector: IPEX1
• Telemetry Power: 500 mW
• Chips: ESP8285, SX1276
• Crystal Oscillator: TCXO
• Weight: 1.9 g (RX only)
• Operating Voltage: 5V

Includes

• 1x GEPRC Nano PA500 Receiver – ELRS 915MHz
• 1x 4pin Silicone Cable
• 1x User Manual
• 1x Heat Shrink
• 1x Antenna
