Description

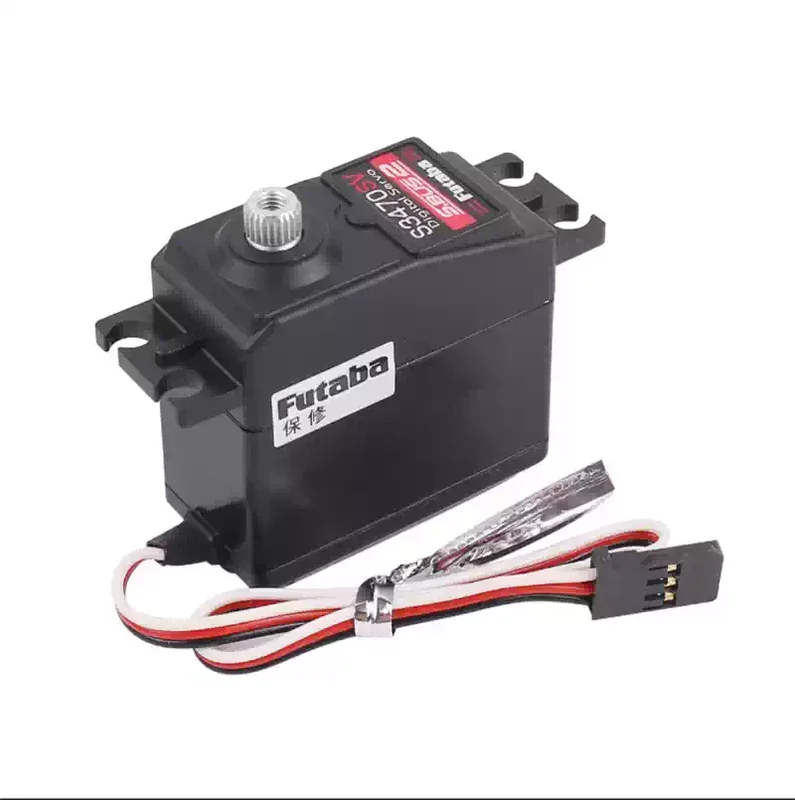

The Futaba S3470SV is a high-performance S.Bus2 programmable surface servo. engineered for RC car and surface vehicle applications that demand fast response. high torque. and reliable control. Built to handle high-voltage operation (up to 7.4V). this standard-size servo is compatible with S.Bus2 systems. allowing for detailed servo parameter customization when used with Futaba programming tools.
With robust internals. compact dimensions. and precise digital control. the S3470SV is ideal for both competition-level RC cars and advanced hobby setups.
⚙️ Key Features
-
Fully programmable via Futaba S.Bus2 system
-
High-voltage operation with wide input range: DC 4.0V–8.4V
-
Fast response time for crisp. accurate surface control
-
Compatible with RC cars and surface vehicles
-
Not suitable for dry battery usage
📐 Specifications
| Parameter | Specification |
|---|---|
| Speed (at 6.0V) | 0.14 sec/60° |
| Speed (at 7.4V) | 0.12 sec/60° |
| Torque (at 6.0V) | 8.0 kgf·cm / 111.1 ozf·in |
| Torque (at 7.4V) | 9.6 kgf·cm / 133.3 ozf·in |
| Operating Voltage | DC 4.0V – 8.4V |
| Rated Voltage | DC 6.0V – 7.4V |
| Size | 40 × 20 × 38.1 mm (1.57 × 0.79 × 1.50 in) |
| Weight | 43 g (1.52 oz) |
| Connector Type | S.Bus2 Compatible |
| Battery Support | No dry battery use |
✅ Applications
-
RC cars (1/10. 1/8 scale)
-
Surface vehicles requiring programmable performance tuning
-
Systems using S.Bus2 telemetry or servo parameter control
For RC enthusiasts who require the perfect balance of speed. torque. and tunability. the Futaba S3470SV S.Bus2 Servo offers a rugged. high-voltage solution that’s built to perform.
Futaba S3470SV S.Bus2 Servo: Speed 0.14/0.12 sec. torque 8.0/9.6 kgf·cm. size 40x20x38.1 mm. weight 43.0g. voltage DC6.0-7.4V (rated). DC4.0-8.4V (operating). No dry battery use. Made in China.
