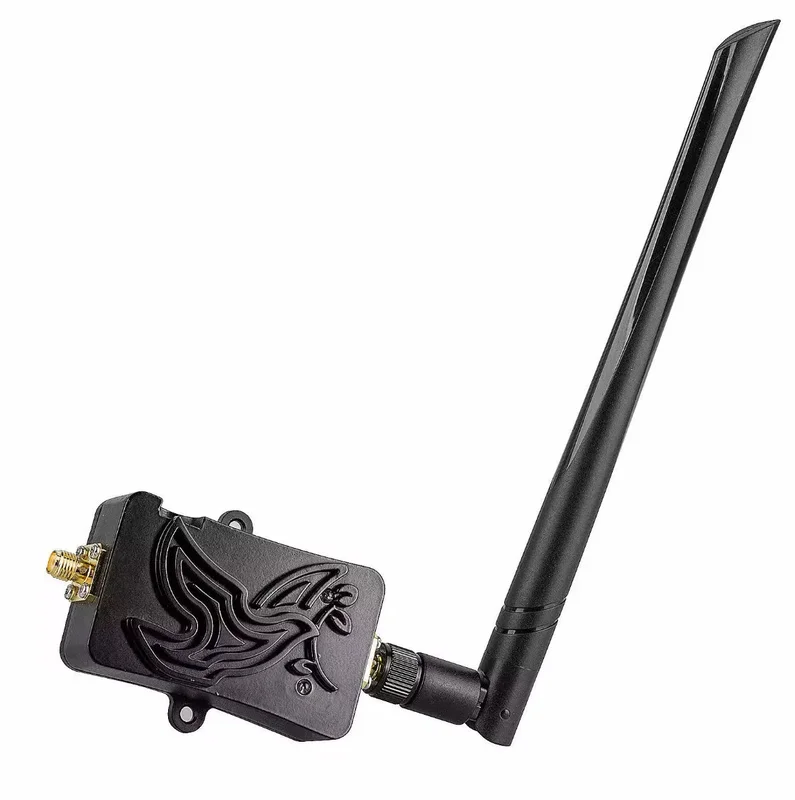

FUTABA Radio Range Extenders Signal Boosters
20x More power
2.5db ultra low noise
WIDE 6V – 16V OPERATING INPUT RANGE
PLUG AND PLAY NO SOFEWARE REQUIRED
Frequency Range: 2.4~2.5GHz Operating Voltage: 6 to 16V
Receiving Gain: 10dB±1 Transmission Gain: 13dB±1
Input Trigger Power: Min: 3dBm Max: 20dBm Maximum Output Power(P1dB): 36dBm(4W)
EVM: 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz DC Supply Current: 435mA@Pout 28dBm 9V
Noise Figure:<2.5dB TX/RX Switch Time Delay:<1us
LED Indicator: Transmitter: green; Receiver: red Operating Ambient Temperature: -40℃ to +70℃
Operating Humidity: up to 95% rel. humidity Dimension: 82mm x 50mm x 21mm
Net Weight: 0.25Kg
