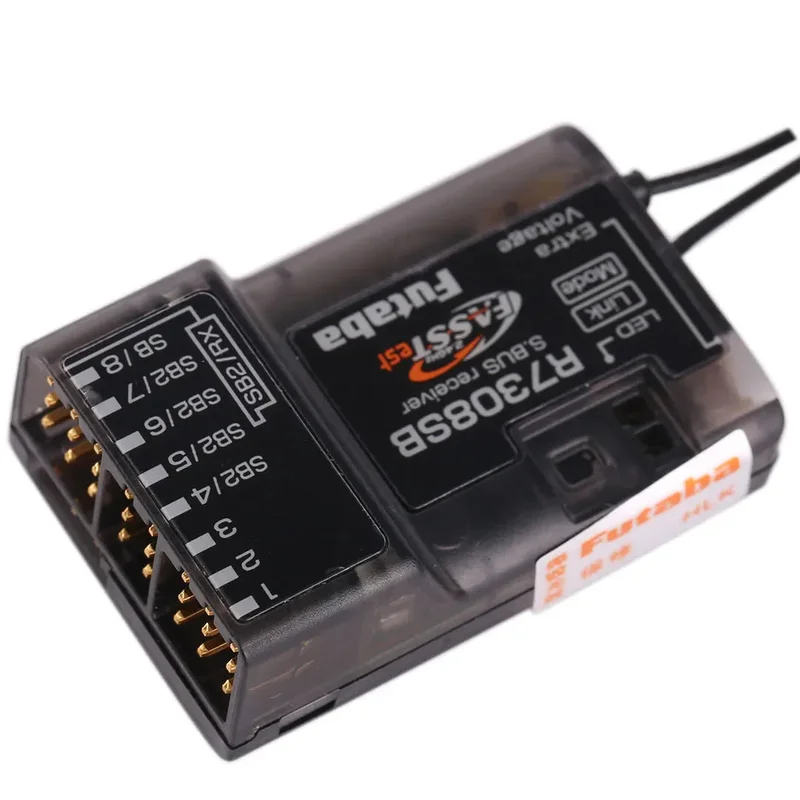

FUTABA R7308SB 8 Channel 2.4GHz FASSTest High Gain Antenna S.BUS Receiver

Description

Overview

Enhance your RC airplane and vehicle experience with the FUTABA R7308SB Receiver. This advanced 8-channel receiver utilizes Futaba’s FASSTest 2.4GHz system. ensuring reliable and interference-free communication. Perfect for airplanes. vehicles. and remote control toys. the R7308SB offers high performance in a compact and lightweight design.

Features

• FASSTest 2.4GHz System
  Operates on Futaba’s reliable FASSTest 2.4GHz transceiver system. supporting both 18-channel and 12-channel modes for versatile applications.

• S.Bus2 Integration
  Equipped with S.Bus2 input/output. S.Bus output. and conventional system outputs (channels 1-6). Simplifies wiring by requiring only one data cable for connections to devices like Microbeat. HC3X. and VBar.

• Dual Receiver Link System
  Enables two-way communication with dual leaf transmitters. enhancing signal reliability and control precision.

• High-Gain Diversity Antenna
  Features a high-gain diversity antenna system to ensure strong and stable signal reception. reducing the risk of interference.

• Compact and Lightweight
  Dimensions: 40 x 25 x 15 mm
  Weight: 11g
  Ideal for installation in various models without adding significant weight.

• Versatile Power Supply
  Power Requirements: 3.7-7.4V (dry batteries not compatible)
  Usable Voltage Range: 3.5-8.4V
  Battery Fail-Safe Voltage: Adjustable via transmitter
  (Note: Use an ESC to adjust the power supply to prevent receiver damage from reverse polarity.)

• Telemetry Support
  Connect multiple optional telemetry sensors to the S.Bus2 port. Display data such as power voltage (0-70V DC) directly on your transmitter.
  (Additional voltage ports and return cables sold separately.)

• Standard Connector Ports
  Easy integration with servos and other peripherals using standard connectors.

• Compatibility
  Compatible with FUTABA 14SG. 16SZ. 18SZ. 18MZ. and other Futaba transmitters for seamless operation.

Specifications

• Model Number: R7308SB
• Frequency: 2.4 GHz
• System: FASSTest (18ch/12ch mode)
• Channels: 8
• Power Supply: 3.7-7.4V (dry batteries not compatible)
• Usable Voltage Range: 3.5-8.4V
• Current Loss: 75mA
• Dimensions: 40 x 25 x 15 mm
• Weight: 11g
• Socket Definition: Signal line near positive terminal; positive terminal in the middle. negative on the ground
• Compatible Models: Airplanes. Vehicles. Remote Control Toys

Included in the Package

• FUTABA R7308SB Receiver
• Fasttest Receiving Instruction for Double Leaf R7008SB

Note: External accessories such as connection cords. batteries. chargers. and other tools are not included.

Usage Notes

• Power Supply: Do not directly use a battery for power. Use an ESC to adjust the power supply to avoid damaging the receiver due to reverse polarity.
• Additional Components: External voltage return cables and additional voltage ports must be purchased separately.

Futaba R7308SB receiver features 8 channels. 2.4GHz FASSTest technology. high gain antenna. and S.BUS compatibility for various applications.

Futaba R-7308SB receiver features 8 channels. 2.4GHz FASST technology and high gain antenna for reliable SBUS connectivity.

Futaba R-7308SB. 8-channel 2.4GHz FASST receiver with high gain antenna and S.BUS system. ideal for radio control model applications requiring reliable and precise signal transmission.

Futaba R-7308SB. an 8-channel 2.4GHz FASSTest receiver with high-gain antenna and S.BUS compatibility.

Futaba R7308SB 8-channel 2.4GHz FASST receiver with high gain antenna and S.BUS compatibility for remote control systems.

Futaba R7308SB 8-channel receiver features 2.4GHz FASSTest technology. high gain antenna. and super stream bus for reliable communication.

Futaba R-7308SB 8-channel 2.4GHz FASST high-gain antenna S.BUS receiver.

Futaba R-7308SB 8-channel 2.4GHz FASST receiver with high gain antenna and S.BUS.

Futaba R7308SB 8 Channel 2.4GHz FASSTest High Gain Antenna S.BUS Receiver for Futaba FASSTest-2 4GHz System Transmitter.

Futaba R7308SB is an 8-channel receiver with a high-gain antenna and S.Bus technology. It has a port switching function. allowing sensors to be connected via SB2/4 to SB2/7 ports. The receiver can operate with a voltage range of 3.5V to 8.4V and supports Futaba FASSTest 2.4GHz system.

FUTABA R7308SB 8 Channel 2.4GHz FASSTest High Gain Antenna S.BUS Receiver: To change to Dual RX Link mode. install two receivers in one aircraft. If one receiver becomes unable to communicate. the other can operate. The receiver has a blinking switch that indicates its status. In Dual RX Link mode. the SBUS port is for reception only and uses CH modes B. C. D. F. G. Connection example: When using ESC. turn off the receiver power. Declaration of Conformity (for EU): Futaba Corporation declares that the R7308SB radio equipment type complies with Directive 2014/53/EU.

Futaba R7308SB 8 Channel 2.4GHz FASSTest High Gain Antenna S.BUS Receiver. In FASSTest mode. to use dual RX link. turn off telemetry transmission to prevent receiver-to-transmitter collision. To do this. put transmitter in link mode and hold SW for 5 seconds or more.

FUTABA R7308SB 8 Channel 2.4GHz FASSTest High Gain Antenna S.BUS Receiver product image: LED Indication: Fix the sleeve to the model Status LINK LED Do not bend the antenna part No signal reception Red Solid Gently bend the coaxial cable part: Start 2second Waiting for link later ~ Red Blink 3 second) Antenna Red Green 90 Unrecoverable error (EEPROM. etc.) Alternate blink installation
