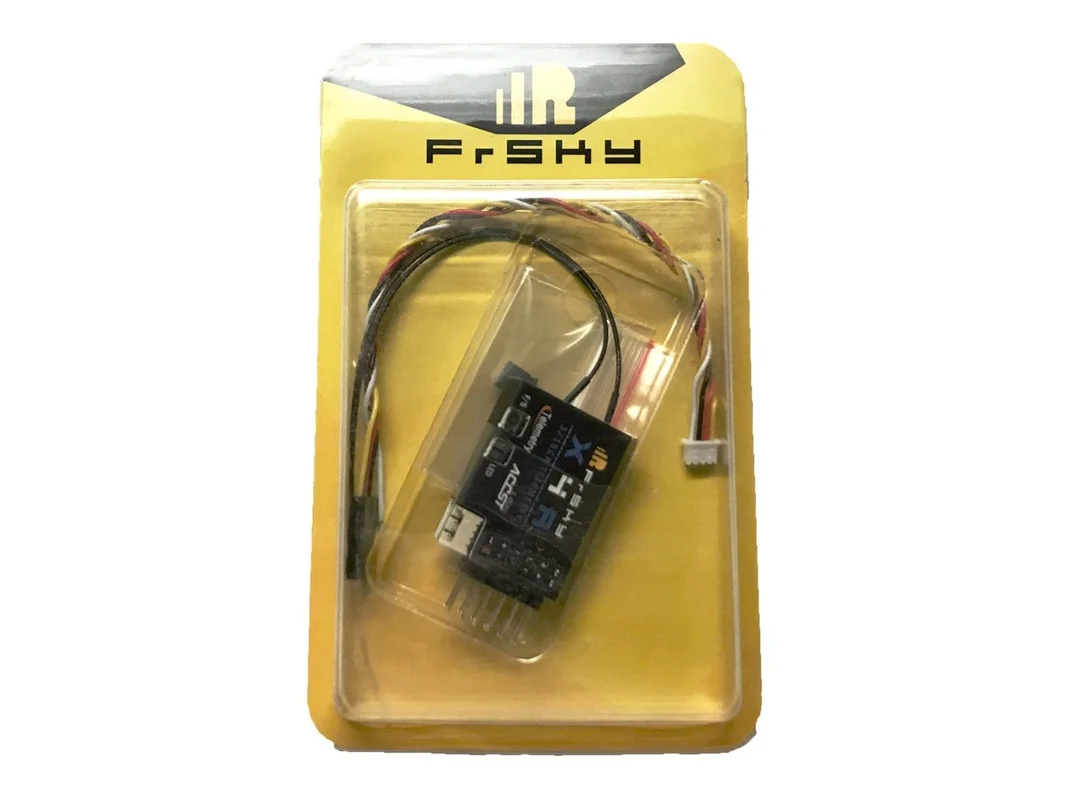

FrSky X4R-SB 2.4ghz 3/16 Channel Receiver S-Bus CPPM

Description

The FrSky X4R-SB is a full featured 16 channel receiver with S-Bus and CPPM support.  It also features 3 physical channels, full duplex telemetry and a small size to fit in tight confines.

• S-Bus and CPPM output
• Small size and weight
• Smart Port for full duplex telemetry
• Selective failsafe settings
• PWM RSSI

Specifications:

• Dimension: 40 X 22.5 x 6mm ( 1.57 x .89 x .24 inches)
• Weight: 3.8 grams
• Operating Voltage Range: 4.0~10V
• Operating Current: 100mA@5V
• Operating Range: >1.5km (Full Range)
• Number of Channels: 3/16Ch (1~3ch from conventional channel outputs,1~16ch from SBUS channel)
• Firmware Upgradeable
• Compatibility: FrSky X-series Module (XJT etc.) Taranis X9D in D16 mode(X4RSB is not work with D-series Module)

Includes:
1x FrSky X4R-SB 2.4ghz 3/16 Channel Receiver
