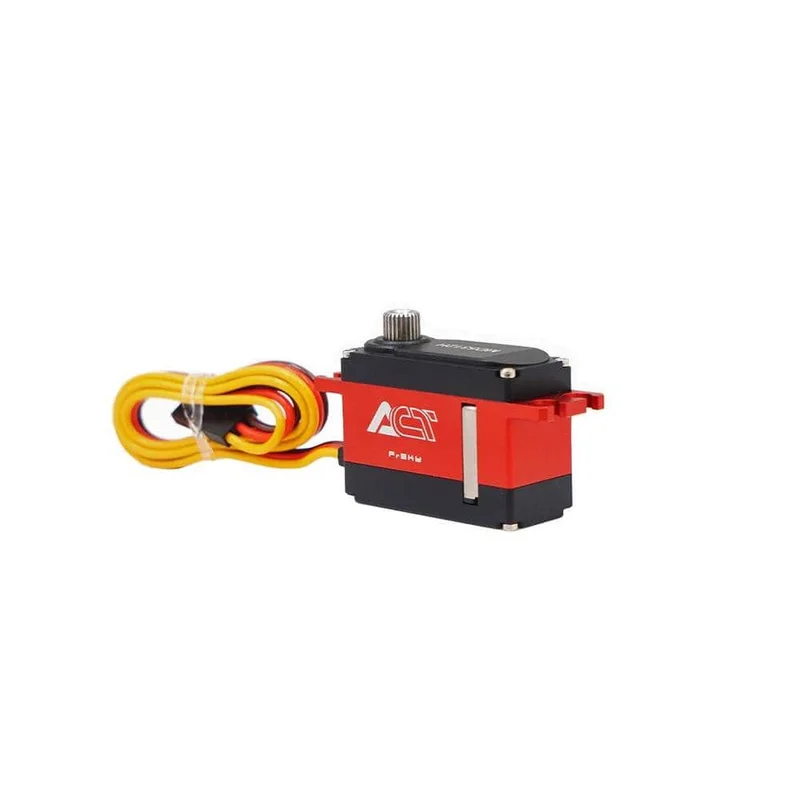

FrSky Act MD5312H Servo

Description

The FrSky Act 5300 series coreless servos utilize a fully CNC-machined aluminum protective case and durable metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.

Check out all our Servos & Accessories and our FrSky products!

Features

• High durability with metal gear and aluminum CNC-machined protective case
• 8.4V High voltage capability, offering excellent torque with optimal speed performance.
• Integrated dual precision ball bearing and potentiometer

Specifications

• Horn Spline: Φ6 25T
• Stall Current: [email protected] / [email protected] / [email protected]
• Operating Voltage Range: 4.8~8.4V
• Reflash Rate: 1520us/50Hz
• Torque:
  • @6.0V: 24.4 kgf.cm 338.9 Oz-in
  • @7.4V: 26.2 kgf.cm 363.8 Oz-in
  • @8.4V: 30.5 kgf.cm 423.6 Oz-in
• Speed:
  • @6.0V: 0.11 sec/60°
  • @7.4V: 0.09 sec/60°
  • @8.4V: 0.08 sec/60°
• Dimensions: 35.5x15x25.3mm
• Weight: 41.2g

Includes

• 1x FrSky Act MD5312H Servo
