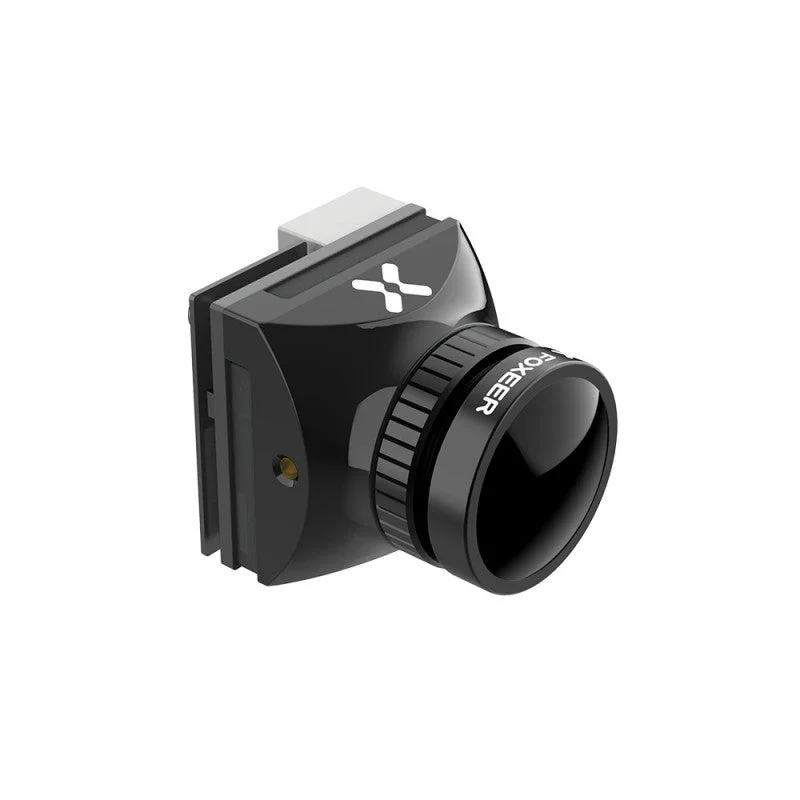

Foxeer Micro Night Cat 3 Overview
The Foxeer Micro Night Cat 3 1200TVL FPV Camera is engineered for ultimate low-light and infrared night operations. Featuring a Sony 1/3″ CMOS sensor. this camera is capable of capturing clear images in extremely low-light conditions with a minimum illumination of 0.00001Lux. Designed to work seamlessly with 850nm infrared light. the Micro Night Cat 3 delivers excellent night vision performance. making it ideal for night flying and other FPV operations in dark environments. It offers both 4:3 and 16:9 aspect ratio switching and PAL/NTSC video system support. ensuring versatility and flexibility for various applications.
Foxeer Micro Night Cat 3 Key Features:
- Superior Night Vision: Works with 850nm IR light to provide enhanced visibility in dark conditions.
- 0.00001Lux Sensitivity: Exceptional low-light performance with ultra-low illumination requirements.
- Aspect Ratio & TV System Switchable: Easily switch between 4:3 and 16:9 aspect ratios. as well as PAL/NTSC video formats.
- Advanced Low-Light Lens: Equipped with an M12 2.1mm F1.4 low-light lens for superior image quality in night-time scenarios.
- Wide Dynamic Range (WDR): 100dB WDR ensures clear details in high-contrast environments.
- Flight OSD Support: Voltage. camera title. and time display on screen for ease of use.
- Compact and Lightweight: With a 19mm x 19mm size and weighing only 10.7g (excluding cables). it is ideal for FPV drones requiring a compact design.
Foxeer Micro Night Cat 3 Specifications
| Sensor Type | Sony 1/3″ CMOS Sensor |
| IR Light | Works with 850nm IR Light |
| Filter | Without filter |
| Scale | 4:3(Default)/16:9 Switchable |
| Tv System | PAL(Default)/NTSC Switchable |
| Resolution | 1200TVL |
| Lens | M12 2.1mm F1.4 Low Light Lens |
| FOV | 4:3 FOV-H: 100° FOV-D:125° |
| 16:9 FOV-H: 100° FOV-D:115° | |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.00001Lux |
| White Balance | Auto |
| DNR | 3DNR |
| WDR | 100dB |
| DAY/NIGHT | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Input Voltage | 4.6V~20V |
| Language | ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA |
| Working Temperature | -10°~50°C RH90% MAX |
| Working Humidity | 20~80% |
| Storage Temperature | -20°~70°C |
| Consumption | 95mA±15% @ DC12V |
| Dimension | 19*19mm |
| Weight | 10.7g(Exclude cable) |
| ODM/OEM | Support |
Package Includes:
- 1 x Foxeer Micro Night Cat 3 Camera
- 1 x OSD Board
- 1 x 2-pin OSD Cable
- 1 x Servo Cable
- 4 x Bracket Screws
- 4 x Gasket Rings
Foxeer Micro Night Cat 3 Details
The Foxeer Micro Night Cat 3 features Low Noise. Low Latency. and Super Starlight 85 Onm IR light. The camera has a F1.4 Large Aperture Lens that significantly increases the amount of light. making the picture brighter and more delicate.
The Foxeer Micro Night Cat 3 comes with a set of components. including: unit of length (10.3-18.7mm). M2x4 screws. bracket screws. gasket ring. OSD board. servo cable. and Z-pin OSD cable.
