Description

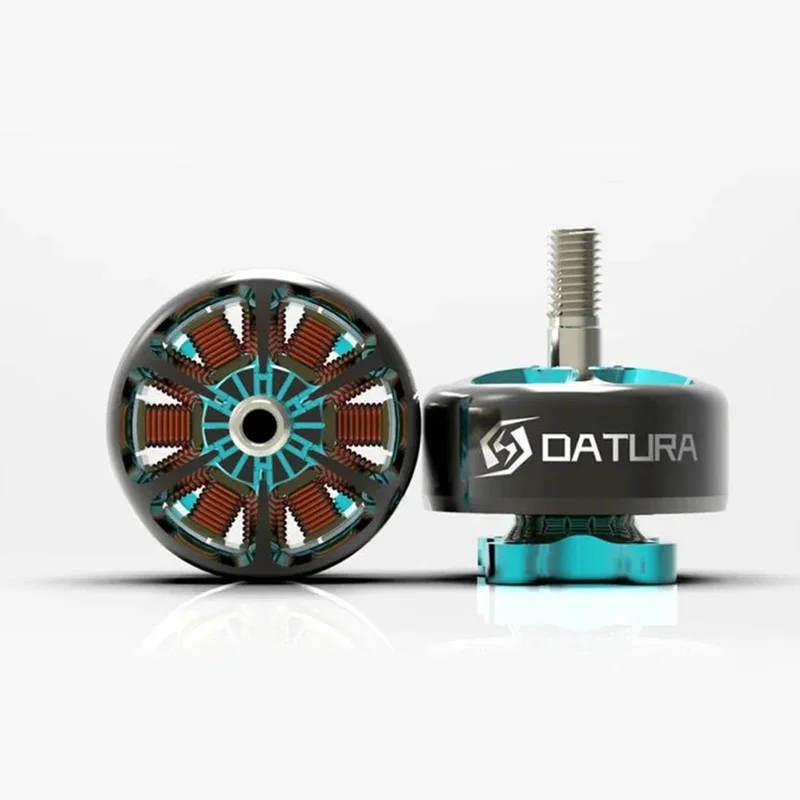

The FOXEER DATURA 2207.5 Brushless Motor is built for high-performance FPV racing and freestyle drones. offering excellent durability. power. and efficiency. With two KV options—1960KV and 2750KV—this motor is designed to cater to both high-thrust and high-speed applications. compatible with 4-6S LiPo batteries and optimized for 5-6 inch propellers.
Key Features
-
Ultra-light Hollow Shaft: Constructed from aerospace-grade aluminum alloy. the 4mm semi-hollow shaft provides a perfect balance of strength and weight reduction.
-
High-Temperature Stator Winding: Military-grade 260°C radiation-resistant copper windings ensure durability and peak performance under continuous full throttle.
-
Premium Build Quality: Equipped with N52H arc magnets and rubber-dampened aluminum bell. delivering smooth response and excellent shock absorption.
-
High Efficiency & Cooling: The open-bottom structure aids in ventilation. reducing overheating during aggressive flying.
Specifications
| Parameter | 1960KV | 2750KV |
|---|---|---|
| Configuration | 12N14P | 12N14P |
| Stator Size | 22 x 7.5mm | 22 x 7.5mm |
| Motor Dimensions | Φ27.5 x 30mm | Φ27.5 x 30mm |
| Shaft | 4mm Hollow Aluminum | 4mm Hollow Aluminum |
| Shaft Thread | M5 | M5 |
| Internal Resistance | 54mΩ | 30mΩ |
Idle Current . All rights reserved.
