Description
Pre-Orders shipping ASAP!

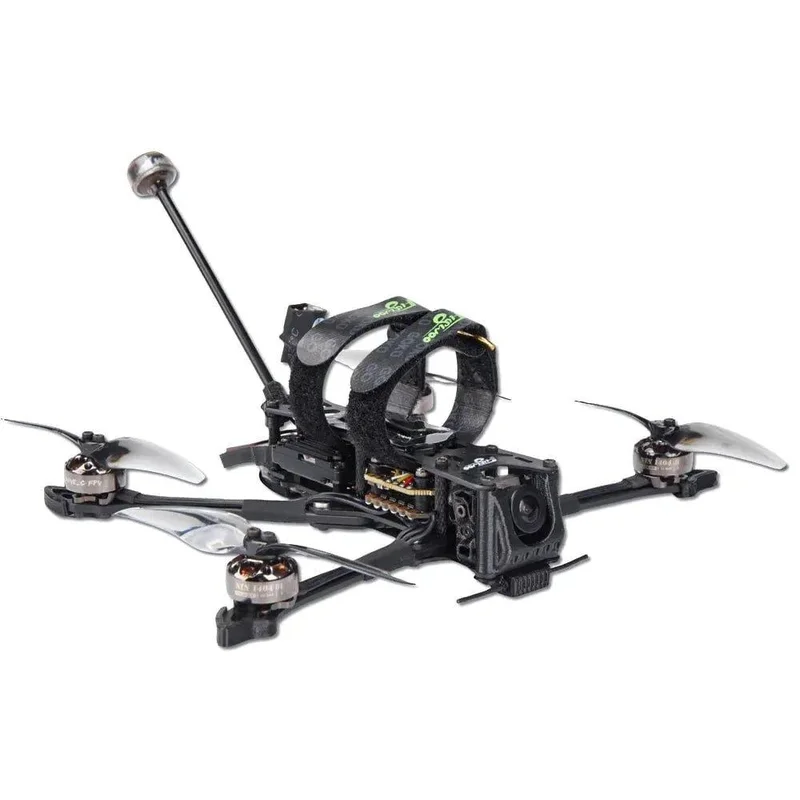

This Flywoo BNF Explorer LR 4″ HD 4S Quad comes with Walksnail Avatar V2 & Avatar Micro Cam V2, giving you buttery smooth and stabilized video performance. The advanced quadcopter technology lets you take your FPV adventures to new heights! Choose your receiver between ELRS 2.4GHz and TBS CRSF 915 Mhz for a secure flight. Enjoy the unparalleled performance and take your FPV adventures to new heights with this cutting-edge technology! This long range quad is a small efficient cruiser with a deadcat design eliminating props in your view, perfect for the elite capabilities of the Walksnail system.
Be sure to check out our Bind-n-Fly collection and our Walksnail Compatible Quads and Electronics as well as other great products from Flywoo!
Features
- Compact and lightweight design, weighing less than 250g even with the battery
- Long flight time of up to 30 minutes
- User-friendly controls for easy operation
- Support 1080P 120fps Recording
- Latency Average Delay 22ms
- Walksnail Avatar V2 Kit 8G ( Camera & VTX)
- Walksnail WS-M181 GPS: Featuring the u-blox M10 platform UBX-M10050 GNSS chipset and BUILT-IN QMC5883 MAG, the module offers stronger performance and more accurate positioning.
Specification
- Model: Explorer LR 4 HD Walksnail Sub250 Micro Long Range
- Brand: FLYWOO
- Frame: Explorer LR 4 HD Walksnail Frame kit
- FC and ESC: Goku Versatile F405 Pro Mini Stack ( F405 FC+ 40A ESC )
- VTX & Cam: Walksnail Avatar HD Kit V2 (8G)
- Propeller: Gemfan Hurricane 4024 2
- Antenna: Flywoo Circular Polarized 5.8GHz UFL Antenna – LHCP
- Motor: NIN 1404 V2 ULTRALIGHT FPV MOTOR
- Weight: 168.4g
Flight Controller Specifications
- MCU: STM32F405BGA
- GYRO: ICM42688P
- UARTS: 1/2/3/4/5/6
- I2C: SCL/SDA
- Barometer: BMP280
- BEC: 5V 2A / 10V 2A
- Blackbox: 16M
- Input Voltage: 2-6S
- Firmware: FLYWOOF405PRO
- Mounting: 20x20mm M3 / 30x30mm M4
- ESC Soft: Dshot300/600
- ESC Telemetry: Yes
- LED Controller: BF LED
- F.Port: Yes
- RSSI: Yes
- Buzz: Yes
- Input: 2~6S Lipo (8.4~25.2V)
- TVS Protection: Yes
ESC Specifications
- Con. Current: 40A
- Burst Current: 45A
- Input Voltage: 2-6S
