Description

SPECIFICATIONS

Brand Name: Feetech

Origin: Mainland China

Material: Metal

RC Parts & Accs: Servos

Size: 54.45X20X38.95mm

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Arm

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembled class

Technical parameters: Value 2

Model Number: FT810BL

Four-wheel Drive Attributes: Motors

Wheelbase: Screws

Features

– Control model is PWM

– Control system type: Digital comparator

– Operating angle: 180°

– Pulse width range: 500~2500μsec

– Electronic protection: locked rotor for 3 seconds (after the steering gear is locked. the output torque will exceed the overload torque and continue to protect the torque after 3 seconds. the overload torque and protection time can be modified)

Product Details

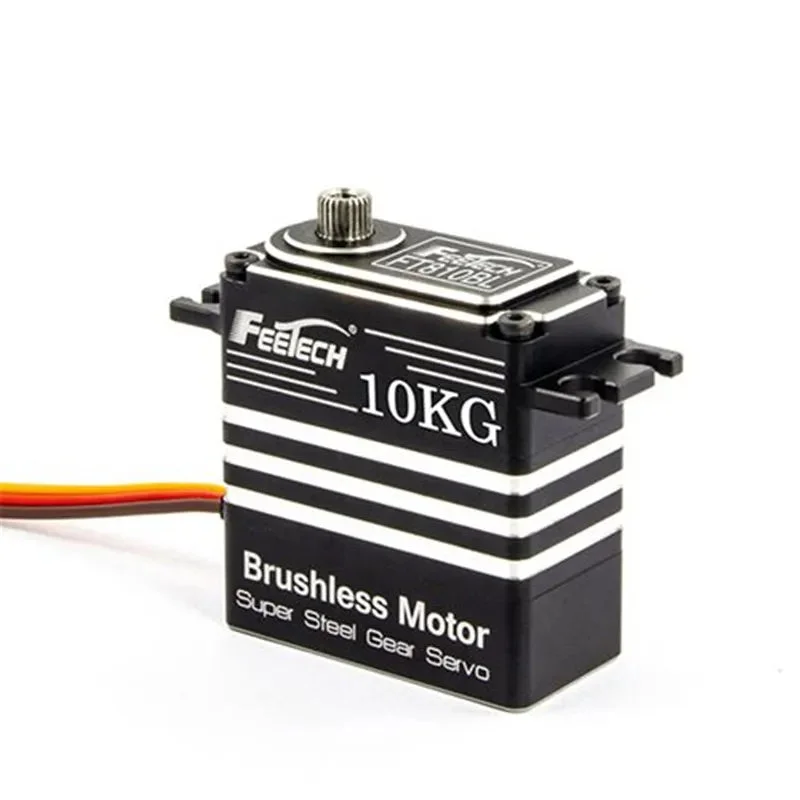

Brand: FEETECH

Model:FT810BL

Storage Temperature Range: -30℃～80℃

Operating Temperature Range: -20℃～60℃

Size: A：54.45mm B：20mm C: 38.95mm

Weight: 84± 1g

Gear type: Steel

Limit angle: NO limit

Bearing: Ball bearings

Horn gear spline: 25T/5.9mm

Gear Ratio: 1/188

Case: Alumi num

Connector wire: 30CM

Motor: Brushless Motor

Operating Voltage Range: 6V-7.4V

Idle current (atstopped): [email protected]

No load speed: 0.07sec/60°@7.4V

Runnig current(at no load) : [email protected]

Peak stall torque: [email protected]

Rated torque: [email protected]

Stall current: [email protected]

Command si gnal: Pulse width modification

Amplifier type: Digital comparator

Pulse width range: 500~2500 μ sec

Stop position: 1500 μ sec

Running degree: 180°(at 500→2500μsec)

Dead band width: ≤4 μ sec

Rotating direction: Counterclockwi se (在1500→2000 μ)

Item Packing

FEETECH FT810BL Servo x 1 25T Metal Servo Arm x 1 Accessories x 1
