Description

SPECIFICATIONS

Name: Feetech FT7135M - 35KG 180 Degree Digital Servo Metal Gear Waterproof Servo DS3235 Baja Servo Metal Arm for 1/8 1/10 1/12 RC Cars
SKU: 8717289324757
Availability: InStock

Brand Name: Feetech

Origin: Mainland China

Material: Plastic

Plastic Type: PC

RC Parts & Accs: Batteries – LiPo

Size: 10*10*10

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories:Lithium Battery

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Battery

Quantity: 1 pcs

Technical parameters: KV1100

Model Number: FT5325M rc Buggy traxxas car servo

Four-wheel Drive Attributes: Motors

Wheelbase: Screws

Model Number: FT5325M rc Buggy traxxas servo

Size: 40.16mm X 20.16mm X 40.05mm

Weight: 67

Gear type: Steel

Limit angle: NO limit

Bearing: Ball bearings

Horn gear spline: 25T

Motor: Core Motor

Operating Voltage Range: 4-8.4V

Peak stall torque:: [email protected]

Rated torque: [email protected]

Running degree: 180± 5 at 500-2500μsec

Motor: Core Motor

Storage Temperature Range: -30 – 80

Product

No.	(Item)	(Specification)
6-1	Size	40.17X36.5X20.16
6-2	Limit Angle	No limit
6-3	Case material	Aluminum
6-4	Gear material	Steel
6-5	Bearing type	Ball bearings
6-6	Angle Sansor	Type: Carbon-Film Potentiometer
Angle: 220°
Life: 1000000Cycles Min
6-7	Connector and Cable	Type: JR
Material: PVC
Length: 30±0.5CM
Pin Definition1 Signal2 Vcc3 GND


6-8	The Weight	64.5± 1g
6-9	Horn Type	25T/5.9mm
6-10	Gear Ratio	1/356
6-11	Back Lash	≦0.5°
6-12	The rocker phantom	0°
6-13	The rocker screw	M3X6
6-14	Motor	Core Motor

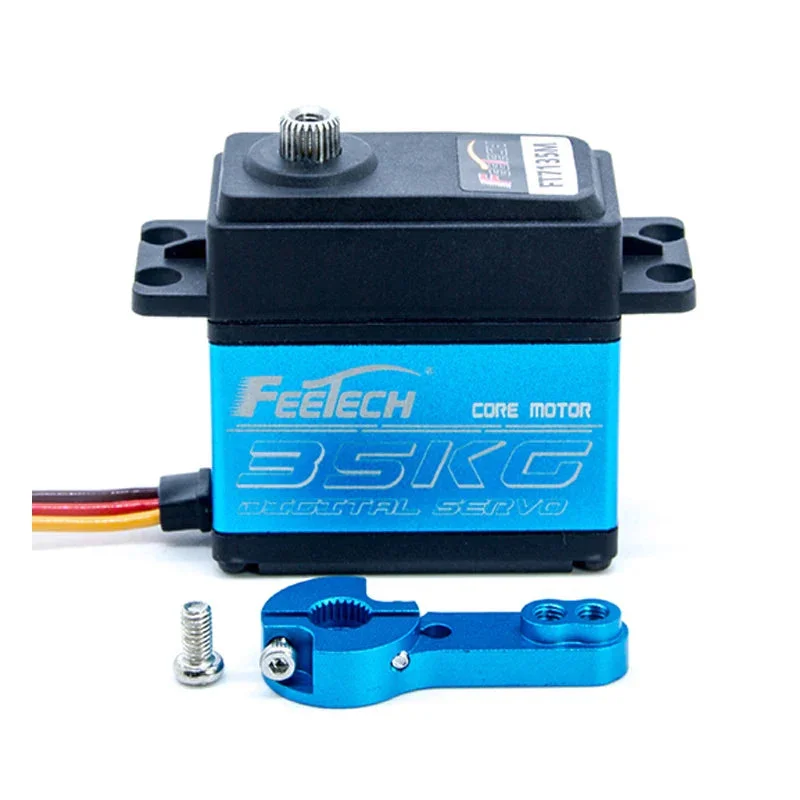

Feetech FT7135M Digital Servo is designed for RC cars. robots. and helicopters. It features a metal gear and waterproof design. making it suitable for use in various applications such as robotics. STEAM education. and DIY projects. The servo has a high torque output of 35kg and can rotate up to 180 degrees.

The Feetech FT7135M digital servo is designed for use in RC cars. robotics. and educational projects. It features a metal arm and intelligent design. with a torque output of 35kg and a rotation range of 180 degrees. making it suitable for DIY automation projects.

Command Signal	Pulse width modification
Control System Type	Digital comparator
Operating Travel	180°± 5° (at 500→2500μsec)
Left&Right Travelling Angledeviation	≤ 5°
Centering Deviation	≦1°
Neutral Position	1500 μsec
Dead Band Width	≤4 μsec
Rotating Direction	Counterclockwise(At 1500→2500 μsec)
Pulse Width Range	500→2500 μsec
Electronic Protection	Stall 8sec
