Description

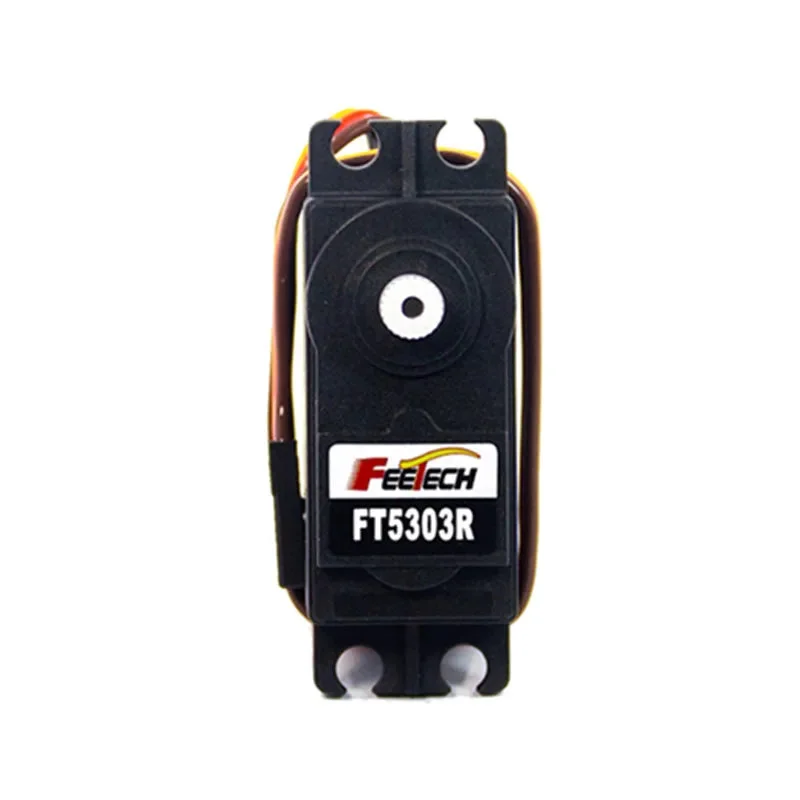

FEETECH FT5303R – 3V 6V Servo SPECIFICATIONS

Brand Name: Feetech

Origin: Mainland China

Material: Plastic

RC Parts & Accs: Servos

Size: 40.15*20.15*37.55mm

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembled class

Quantity: 1 pcs

Technical parameters: Value 2

Model Number: FT5303R

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

Bearing: 2 Ball bearings

Horn gear spline: 25T

Horn type: Plastic.POM

Case: Nylon & Fiberglass

Operating Voltage Range: 3-6V

Idle current(at stopped): 5mA

No load speed: 81RPM@6V

Runnig current(at no load): 150 mA @6V

Feelech IEFBV =YKZ) 6V 3.0AF 360E.14’4t3649E+L Low VOLTAGE 3v DRIVEABLE. 6v 3.0 KG 360 DEGREE CONTINUOUS DIGitAL SERVO #5: FT5303R 7S 7rn

Product Information: FT5303R (Model No.) – This is a digital continuous servo that operates on both 3V and 6V power sources. with a torque capacity of 3.0 kg.cm. The servo features plastic gear rotation in both forward and backward directions. offering 360 degrees of continuous rotation. Kit Contents: White housing + kit. Environmental Conditions: Operating Temperature -25°C to +55°C; Relative Humidity – 65% ± 10%. No Item Specifications.

Control Specifications for FT5303R Servo:* Command Signal: Pulse Width Modulation (PWM)* Amplifier Type: Digital Comparator* Pulse Width Range: 500-2500 μs* Neutral Position: 1500 μs* Running Degree: 360° Continuous Rotation* Dead Band Width: ±20 μs around the neutral position

Detailed Images
