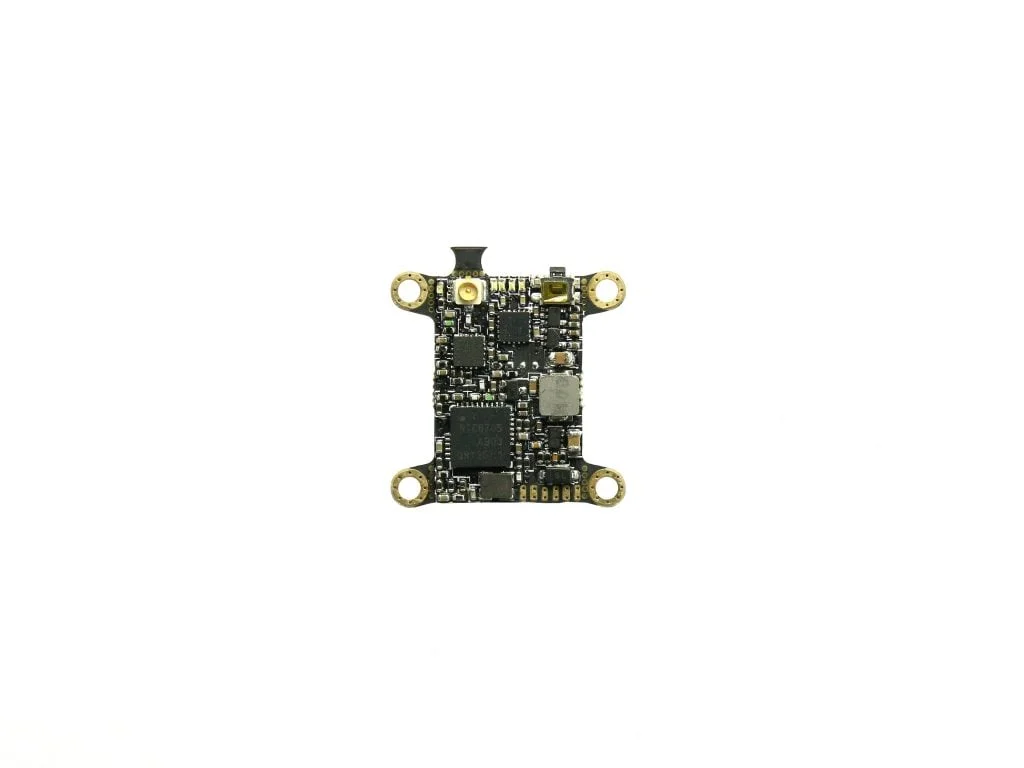

PandaRC VT5804 Mini 5.8G 16CH 400mW Video Transmitter

Check out all of our PandaRC Products

◆Model: 5804 MiniX 5.8G 16CH

◆Output power : 25mW/50mW/100mW/200mW/400mW

◆Input Voltage: 6~26V

◆Output power: 25/50/100/200/400mW Switchable

◆Frequency: 16Channels; Including Group A and Group R

◆Weight: 3g(not including antenna)

◆Size: 24x24x3mm

◆Mounting holes Dimension: 20mmx20mm

◆Connector: IPX-E

◆Video format: NISC/PAL

◆Device configuration through OSD

◆PIT Mode

Feature:

▲Stable output power and Long transmission distance:≧0.5@25mW,≧1km@200mW,≧5km@400mW(Original Antenna)

▲Device configuration through OSD

▲Frequency: 16Channels;Including Group A and Group R

▲Fast frequency lock,boot does not interfere with companion

▲Self-contained output power self-test function

▲Small Size and light weight
