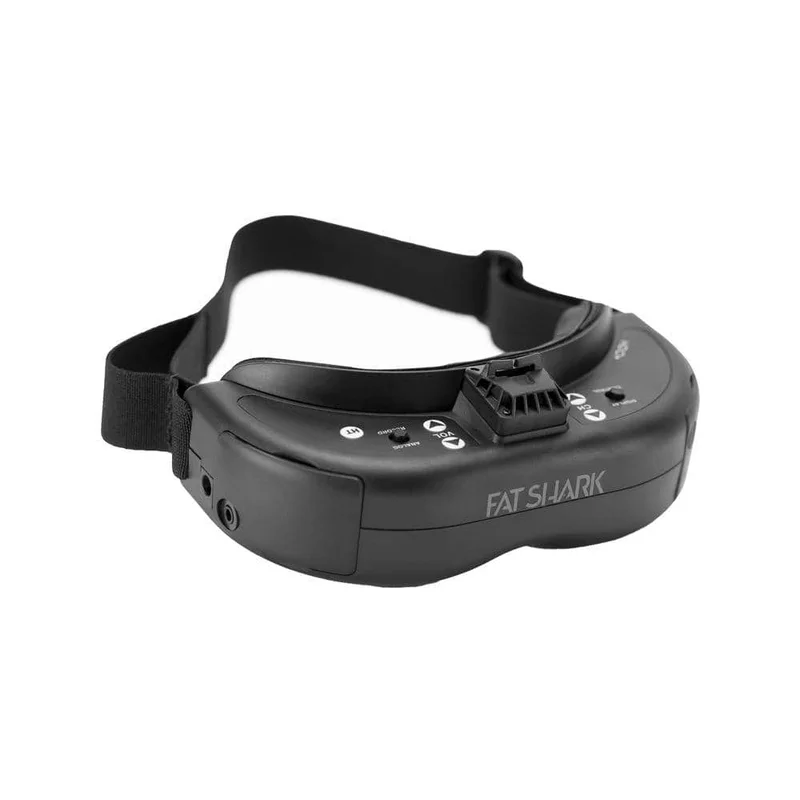

Fat Shark HDO+ FPV Goggles – NDAA (Midnight Black)

Description

Introducing the new NDAA-compliant Fat Shark HDO+ FPV Analog Goggles in Midnight Black. Take your FPV experience further with the Fat Shark HDO+ Goggles, built with an upgraded OSD menu that makes adjusting settings faster and easier. Designed for modern FPV pilots, the HDO+ includes a wide range of customization options for a more personalized flying experience. An expanded field of view combined with high-resolution OLED displays delivers sharp, immersive visuals, while the updated optical system provides precise focus and IPD adjustments for improved comfort and clarity during every flight. The head strap is also Berry-compliant.

Check out all our FPV Goggles, and our FatShark gear selection!

Features

• NDAA-Compliant Goggles / Built in the USA
• Berry-Compliant Head Strap
• Brightness/Contrast Control
• Coarse Focus Adjustment
• Focus and IP Adjustment
• Onboard Ventilation Fan
• Analog DVR Operation
• Midnight Edition Black
• AV Connector Pin-Out
• Upgraded OSD Menu
• Ergonomic Face Fit

Specifications

USER CONTROLS

• Display Control (Brightness and Contrast)
• Power Button / Fan Control
• Channel Selection
• Volume Control
• Mode Selection
• DVR Control

INTERFACE

• 3.5mm 3p earphone port
• 3.5mm AV in/out port
• Power input port
• RF Module Bay
• Power Button
• MicroSD
• Audio: Stereo

ELECTRICAL

• Analog DVR: MicroSD support to 32 GB, Upgradeable via SD card
• Record Rate: 6 Mbps (MJPG compression, 30 fps, AVI)
• Power Supply: 7 – 25V input voltage (2S – 6S Supply)
• File playback: Native recording, no codec support

HEADSET

• Headset: Ergonomic molded headset with adjustable headband
• Dimensions: 169.2 x 80 x 45.5 mm
• Head Strap Berry-Compliant: Yes
• Goggles NDAA-Compliant: Yes
• Color: Midnight Edition Black
• Weight: 235.8 g

OPTICS

• IPD (interpupillary distance): 57 to 70 mm (adjustable)
• FOV (Field of View): 50 degrees diagonal
• Focus: +2 to -6 diopters (adjustable)

DISPLAY

• OLED Displays: Two seeya 0.49”
• DIGITAL VIDEO IN Mode: 16:9
• Auto-Selecting: NTSC/PAL
• Resolution: 1920 x 1080
• AV Mode: 16:9
• AV Mode: 4:3

Includes

• 1x Fat Shark HDO+ FPV Goggles – NDAA (Midnight Black)
• 1x XT60 to Barrel Connector Power Cable
• 1x Berry-Compliant Head Strap
• 1x Lens Cleaning Cloth
• 1x Carrying Case
