Description

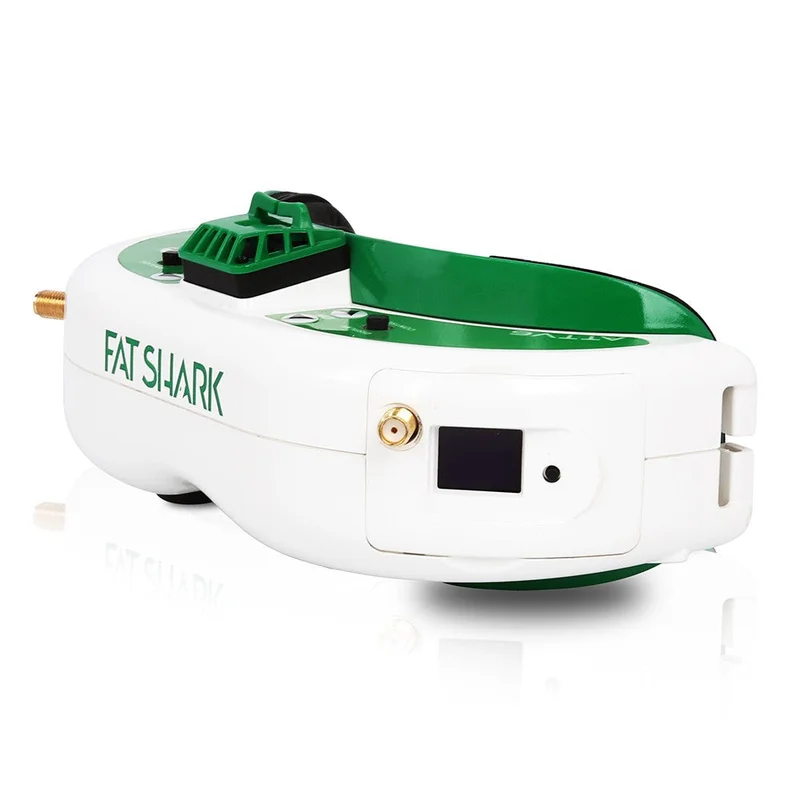

The new Fat Shark Attitude V6 focuses on high definition with 1280 x 960 LCOS panels and adjustable diopters. In addition to the 39-degree field of view, the Attitude V6 has a selectable image ratio, an expanded display control menu, and a configurable power button. The Attitude V6 ships with analog diversity receivers and is fully compatible with the Shark Byte HD module future-proofing your FPV experience!
Optics:
- FOV (field of view): 39 degrees diagonal
- IPD (interpupillary distance): 54 to 74 mm (adjustable)
- Focus: +2 to -6 diopters (adjustable)
Display:
- Two citizen 0.4” LCOS displays
- Resolution 1280 X 960
- NTCS/PAL auto selecting
- AV Mode 4:3
- AV Mode 16:9
- HDMI Mode 16:9
Audio:
- Stereo
User Controls:
- Channel Selection
- Volume Control
- Mode Selection
- Display Control (Brightness and Contrast)
- DVR Control
- Power Button / Fan Control
Electrical:
- Power Supply: 7 – 13V input voltage (2S – 3S Supply)
- Power Consumption: 320mA @ 7.5V input power (no RX module)
- 770mA @ 7.5V input power (Rapid Fire)
Analog DVR:
- MicroSD support to 32 GB
- Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
- File playback (native recording, no codec support)
- Upgradeable via SD card
Battery:
- 7.4V, 1.8A 18650 Battery Case
Interface:
- 3.5mm AV in/out port
- Power input port
- 3.5mm 3p earphone port
- MicroSD
- RF Module Bay
- HT connector 3 pin internal connection
- Power Button
Mechanical:
- Ergonomic molded headset w/ adjustable headband
- Dimensions: 169.2 x 80 x 45.5 mm
- Weight: 199g
