Description
Product parameters:
Material: Metal
Color: As shown in the picture
Brand: EPHIL

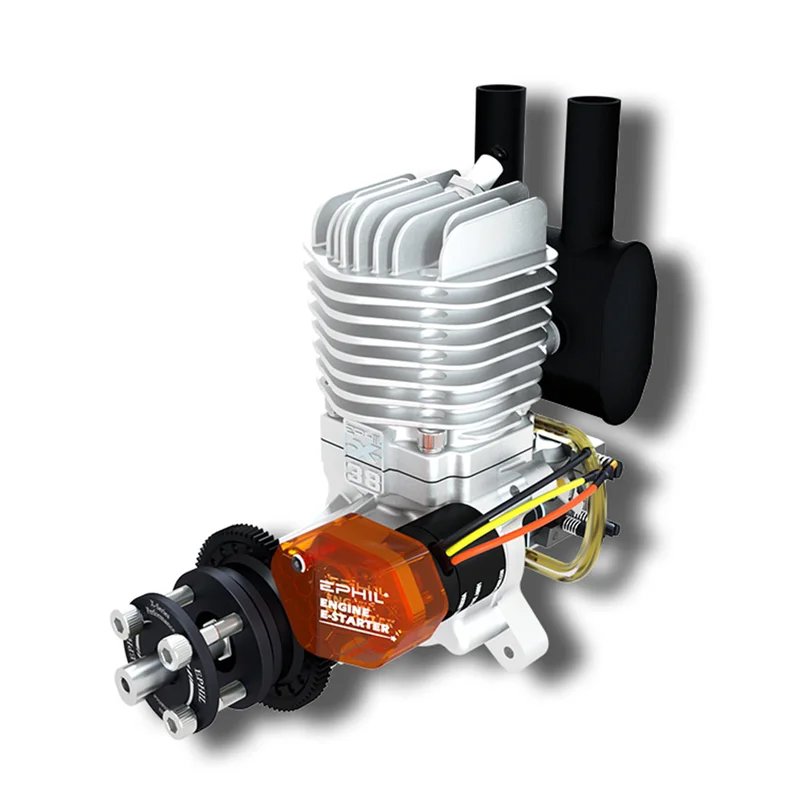

Model: X-38cc-R Pro
Displacement: 38cc (2.33 cu in)
Performance: 4.2 HP
Speed Range: 1800-7300 RPM (Test Paddle-20*9)
Bore: 39 mm (1.54 in)
Stroke: 32.5 mm (1.28 in)
Static Thrust: 10.5 kg @ 100 m ALT (23.1 lb @ 328 ft ALT)
Static Thrust: 8.5 kg @ 1800 m ALT (18.7 lb @ 5900 ft ALT)
Compression Ratio: 9:1
Lubrication Ratio: 30:1 (Gasoline: Lubricating oil)
Ignition Voltage: 6-14V
Spark Plug Type: CM6 Iridium Spark Plug
Recommended Propeller: 19×8; 19×10; 20×8; 20×10
Main Engine Weight: 1216g
Muffler Set Weight: 73g
Aluminum Standoffs Set Weight: 100g
Spark Plug Weight: 13.5g
CDI(Ignition): 104g
Starter Weight: 109g
ESC Weight: 36g
Total Weight: 1542.5g (3.4 lb)
Suitable age: 16+;
Product features:
1. Precision manufacturing, stable operation, excellent quality, strong power, easy maintenance, quick start.
2. The Pro upgraded engine is equipped with electric start, with a dedicated electric regulator, so that your aircraft can be started simply and quickly with one button. Countless tests and good reputation have proved its reliability.
3. The standard CM6 iridium spark plug can show stronger stability in high temperature and high pressure cylinders. Tests show that its life is greatly improved compared to ordinary spark plugs.
4. It is standard with a special exhaust pipe that can be connected to the smoke system. You can install the smoke system very conveniently, making your aircraft as brilliant as a meteor in the sky.
5. Our engine is suitable for various types of fixed-wing aircraft models, providing your aircraft with strong power performance, and good working performance will not let you down.
Packing list: engine*1, exhaust pipe*1, CM6 iridium spark plug*1, CDI igniter*1, engine bracket*1, propeller shaft adapter*1, gear-driven propeller shaft*1, electric starter*1, ESC*1, user manual and warranty card*1
