Description

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Assembled class

Technical parameters: Value 2

Remote Control Peripherals/Devices: Motor

Recommend Age: 14+y

Recommend Age: 12+y

RC Parts & Accs: Speed Controllers

Quantity: 1 pcs

Origin: Mainland China

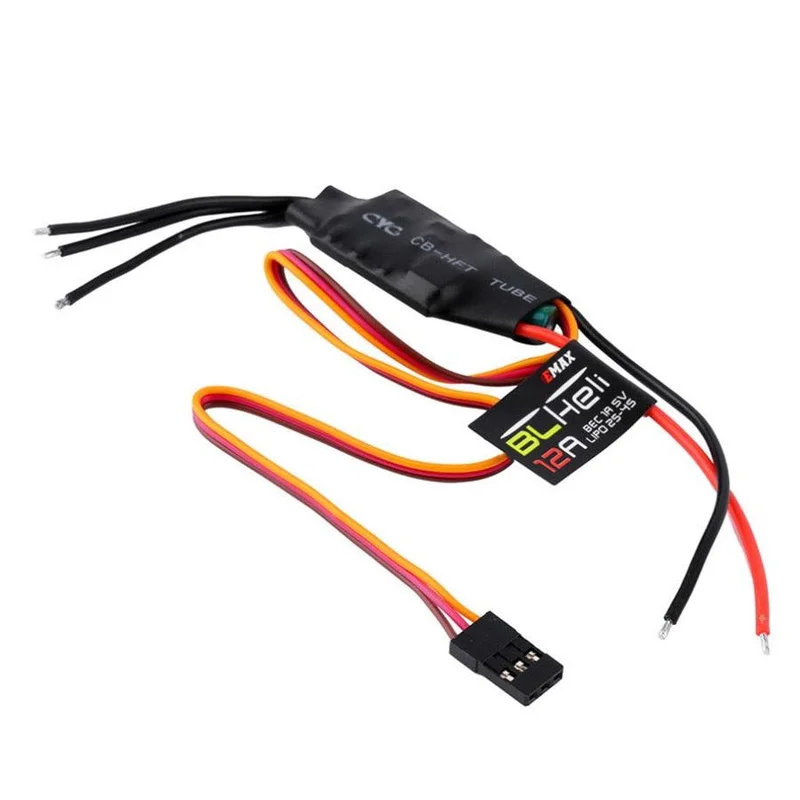

Model Number: BLHELI 12A ESC

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: Hoenvesta

Features:

Based on Emax BLHELI firmware. further optimized to the perfect drive performance.
Low-voltage protection. over-heat protection and self-check functions.
Separate power supply for MCU and BEC. enhancing the ESC’s ability of eliminating magnetic interference.
Parameters of the ESC can be set via program card or transmitter.
Throttle range can be set to be compatible with different receivers.
Equipped with built-in linear BEC or switch BEC.
Max speed: 210.000 rpm for 2-pole. 70.000 rpm for 6-pole. 35.000 rpm for 12-pole.

Specifications:
Continuous Current: 12A
Burst current (10S): 15A
Li-xx Battery (cell): 2-3
Dimension (L * W * H): 25mm x 20mm x 7mm
Weight wires Included: 9
BEC Mode: Linear
BEC Output: 1A / 5V
Programmable: Yes

Package Including:
1 x BLHELI-12A ESC
