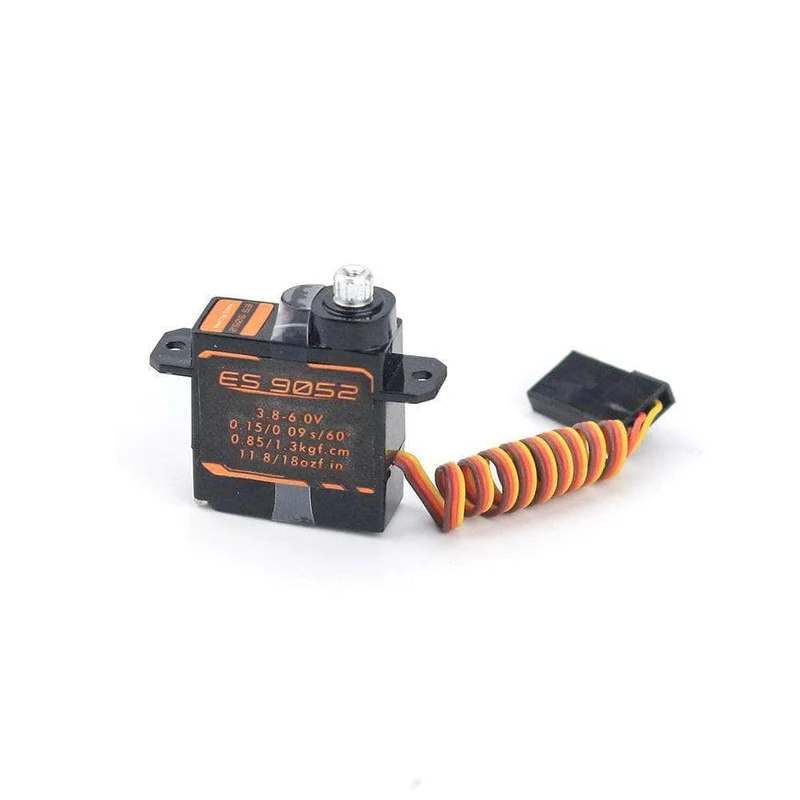

EMAX ES9052MD 5.5g Metal Gear Digital Servo

Description

The EMAX ES9052MD servo offers powerful performance in an incredibly small size. Despite being an all-metal gear servo, 4.3g weight is maintained in order to not heavily weigh down any aircraft or robotics for full maneuverability. Featuring a coreless motor, the ES9052MD is able to fit perfectly on any aircraft as a powerful upgrade or alternative with maximum strength. With the accuracy of digital, paired with the long lifespan of metal, the ES9052MD is a standard in servos for years to come.

Check out all our Servos & Accessories and all our EMAX gear!

Features

• Metal Gears for ultimate reliability
• Digital for the smoothest operation

Specifications

• Operations Voltage: 3.8-6V
• Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
• Stall Torque at 3.8V: 0.42kg/cm max
• Stall Torque at 6.0V: 0.65kg/cm max
• Speed at 3.8V: 0.11 sec/60* (zero load)
• Speed at 6.0V: 0.07 sec/60* (zero load)
• Size: 25.5×19.9×8.3mm
• Weight: 4.8g
• Plug: JR
• Cable Length: 180mm
• Head Splines: 15T
• Maximum Travel: 160°
• Gears: Metal
• Operation: Digital

Includes

• 1x EMAX ES9052MD 5.5g Metal Gear Digital Servo
• 3x Plastic Servo Horns
• 1x Mounting Hardware Set
