Description

SPECIFICATIONS

Brand Name: EMAX

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Servos

Size: 28.45*13*31.10mm

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Servos

Quantity: 1 pcs

Technical parameters: Value 3

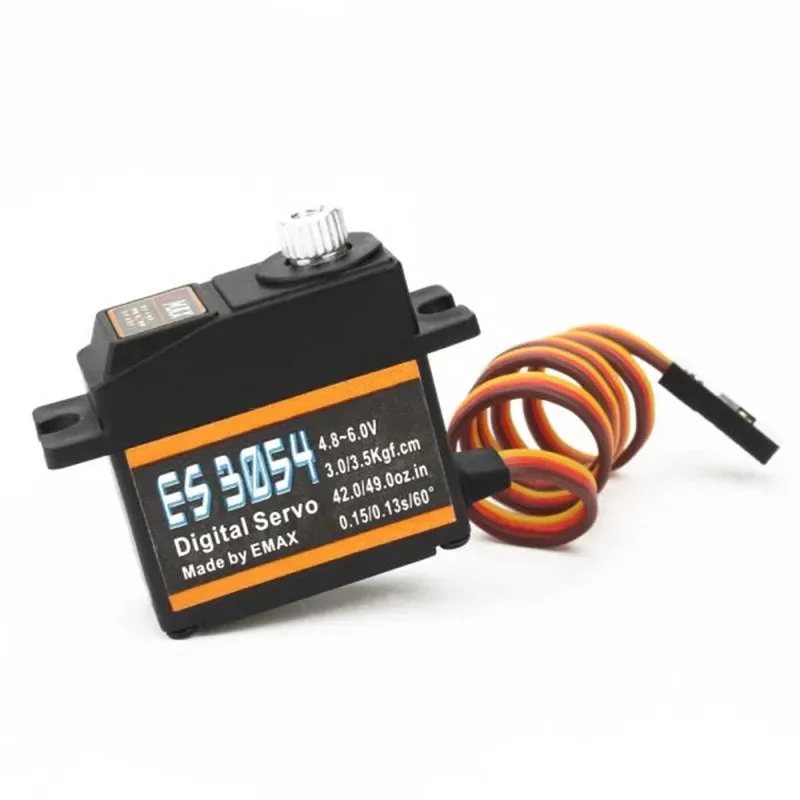

Model Number: Emax ES30

Specifications:

Brand Name:EMAX
Item Name:ES3054
Operating Voltage:4.8V – 6.0V
STD Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
Stall Torque: 4.8V 3kg.cm Max
Operating Speed: 4.8V 0.15 sec/60° at no load
Stall Torque: 6.0V 3.5kg.cm Max
Operating Speed: 6.0V 0.13 sec/60° at no load
Size : 28.45×13.00×31.10mm
Weight:17g
Plug Available: FUT;JR
Flower Head: 23T
Maximum Travel: 145°±10° (700-2300μ sec)
Others: Bearing; Metal;

Emax ES3054 Servo Series Specifications: Weight – 17g. Torque – 3.5kg.cm. Operating Speed – 0.13 seconds. Travel – 23T. Key features include operating voltage range (4.8V to 6.0V). standard direction counter-clockwise. pulse traveling speed (1500 to 1900 pulses per second). stall torque (4.9V/cm at no load). and operating speed of 0.15 seconds/60 degrees at no load.
