Description

Emax ES3053  ESPECIFICATIONS

Brand Name: EMAX

Origin: Mainland China

Material: EVA

Recommend Age: 14+y

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Grinded

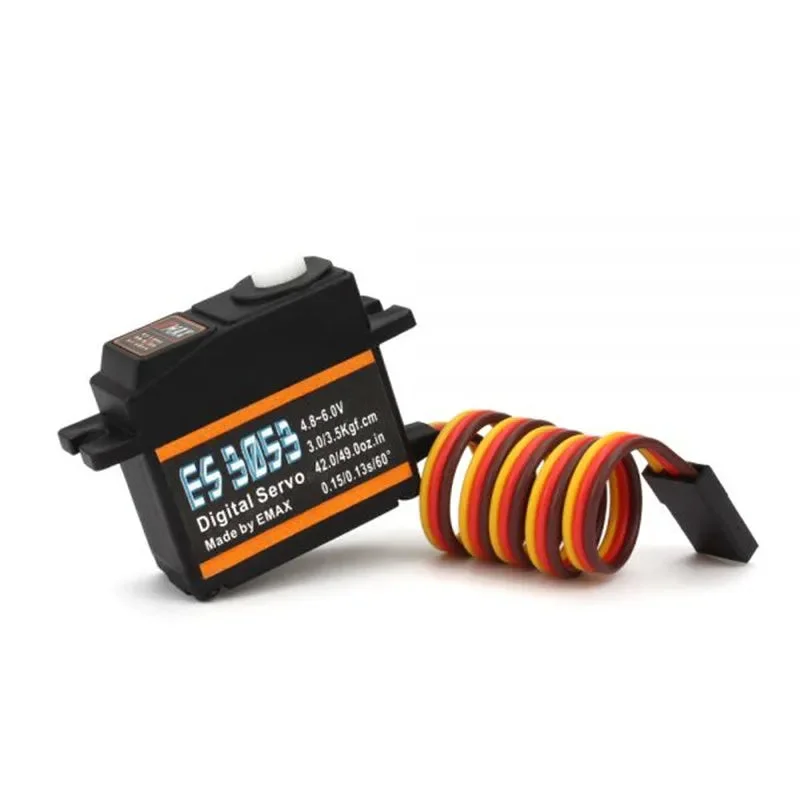

Emax ES3053 17g 3.5kg 0.13sec 23T Plastic Gear Digital Servo For RC Airplane ES3153 upgrade

Package Included:
1x EMAX ES3053 17g Servo

Specifications:

Brand Name：EMAX
Item Name： ES3053
Operating Voltage： 4.8V – 6.0V
STD Direction： Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
Stall Torque： 4.8V 3kg.cm Max
Operating Speed： 4.8V 0.15 sec/60° at no load
Stall Torque： 6.0V 3.5kg.cm Max
Operating Speed： 6.0V 0.13 sec/60° at no load
Size： 28.45×13.00×31.10mm
Weight： 17g
Plug Available： FUT;JR
Flower Head： 23T
Maximum Travel： 145°±10° (700-2300μ sec)
Others Bearing; Plastic; Digital

The Emax ES3053 Servo Series has the following specifications: weight (17g). gear ratio (3.5kg). operation time (0.13 seconds). torque (23T). This servo is designed for RC airplane upgrades. specifically the ES3153 model.
