Description

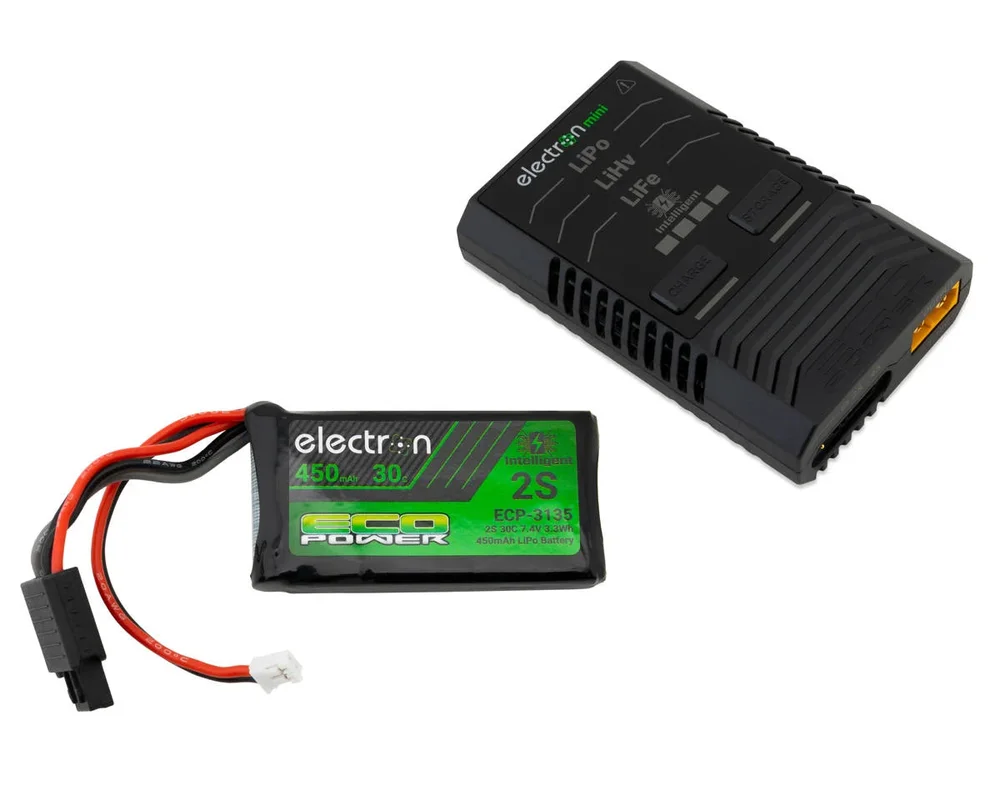

EcoPower Intelligent 2S 450mAh PH2.0 LiPo Battery/”Electron Mini” Charger Bundle (SCX24 & Other Mini Crawlers)
Features:
- Intelligent battery recognition
- Simple two-button operation
- 65W USB-C power supply included
- Supports LiPo, LiHV, and LiFe batteries
- Automatic charge rate adjustment for non-intelligent batteries
- Progress bar display for charging status
- Warning light system for troubleshooting
- Includes XT60 to EC3 and XT60 to EC5 charging cables
- Compact and portable design
IMPORTANT LITHIUM POLYMER SAFETY INFORMATION
- DO NOT leave a battery in your model when charging
- DO NOT leave lithium batteries unattended when charging
- ALWAYS balance charge lithium battery
- ALWAYS use a LiPo Safe charging bag/box
- YOU MUST use a Li-Poly specific charger to charge lithium batteries (NiMH or NiCD only chargers WILL NOT WORK!)
- YOU MUST not over discharge lithium battery packs
- READ & UNDERSTAND the instructions carefully before operating this battery
Includes:
- (1) Intelligent 2S 450mAh LiPo Battery
- (1) “Electron Mini” Battery Charger
- (1) 65W USB-C power supply
- (1) XT60 to EC3 charging cable
- (1) XT60 to EC5 charging cable
- (1) XT60 to PH2.0 charging cable
- (1) Instruction manual
Specifications:
| Charger | |
| Input Power: | AC |
|---|---|
| Input Voltage: | 5-20V |
| LiPo/LiHV/LiFe Cell Count | 2-4S |
| NiMH/NiCd Cell Count | LiPo Only |
| Pb Battery Voltage | LiPo Only |
| Input Connector | USB-C |
| Output Connector | XT60 |
| Charge Power | 60W |
| Discharge Power | 3W |
| Charge Current | 1-5A |
| Discharge Current | Based on Battery Voltage |
| Balance Current | 0.3A/Cell |
| Dimensions | 3.35×2.16×0.83in (85x55x21mm) |
| Weight | 2.24oz (64g) |
| Battery | |
| Nominal Voltage: | 8.4V (2S) |
| Capacity: | 450mAh |
| Maximum Charge Rate: | Not Available |
| Discharge Rates | |
| Continuous: | 50C |
| Peak: | – |
| Cell Configuration: | 2S1P |
| Watt Hours: | 3.3Wh |
| ROAR Approved: | No |
| Connectors | |
| Battery: | PH2.0 |
| Balance: | Intelligent Connector |
| Dimensions (LxWxH): | 2.18×1.17×0.34in (55.4×29.6×8.6mm) |
| Weight: | – |
Note: When using high energy Li-Polymer Batteries, please do not over-discharge or over-charge batteries as this will result in overheated batteries. Discharging capacity can’t exceed 80% of the max capacity of the pack after full charging to ensure a good cycle performance. It is recommended to fully charge a brand new battery before using and only discharge the battery 50% for the first 5 cycles. Always monitor race time and/or set a low voltage warning on ESC (End voltage cannot be lower than 3.2v per cell). Do not use a battery that has too low a voltage. Do not expose batteries to sunshine or store/charge batteries at temperatures above 35°C or in a closed car. The high-temperature environment could cause damage to the pack or make it burst. If the battery becomes hot while fast charging, high current discharging, or racing, do not charge it until it has cooled completely. Wait about 20 mins, then inspect prior to recharging.
**Note: Please use the “Resources” tab to view important lithium polymer battery warnings, safety information, and warranty information.
