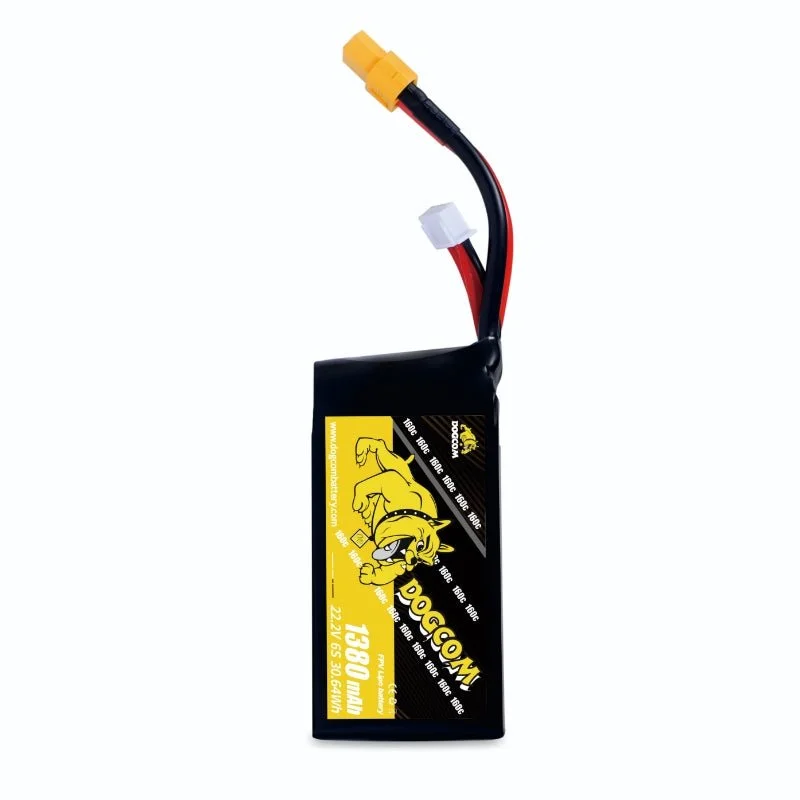

DOGCOM 6S 1380mAh 160C Battery

Description

DOGCOM 1380mAh 160C 22.2V 6S is the top-selling version of the FPV Lipo battery series. It’s got a higher C rate, higher capacity, lower internal resistance, and lower landing temperatures. They are more powerful than other series of FPV Lipo batteries.

• High & stable quality, Lower internal resistance, Longer life cycle.
• Higher capacity than comparable-size packs
• Very high C rate.
• Stable automatic stacking technology
• No memory effect.

Specifications:

Brand: DOGCOM

Capacity: 1380mAh

Configuration: 22.2V / 6S1P / 6cells

Continuous Discharge Rate: 160C

Max Discharge Rate: 320C

Dimensions: T*W*L=36mm x 39mm x 80mm

Weight: about 221g

Power: 30.64Wh

Balance Plug: JST-XHR

Connector: XT60

Packing List:

1x DOGCOM 6S 1380mAh 160C Battery

Documents

MSDS — Material Safety Data Sheet
UN38.3 Test Report
