Description

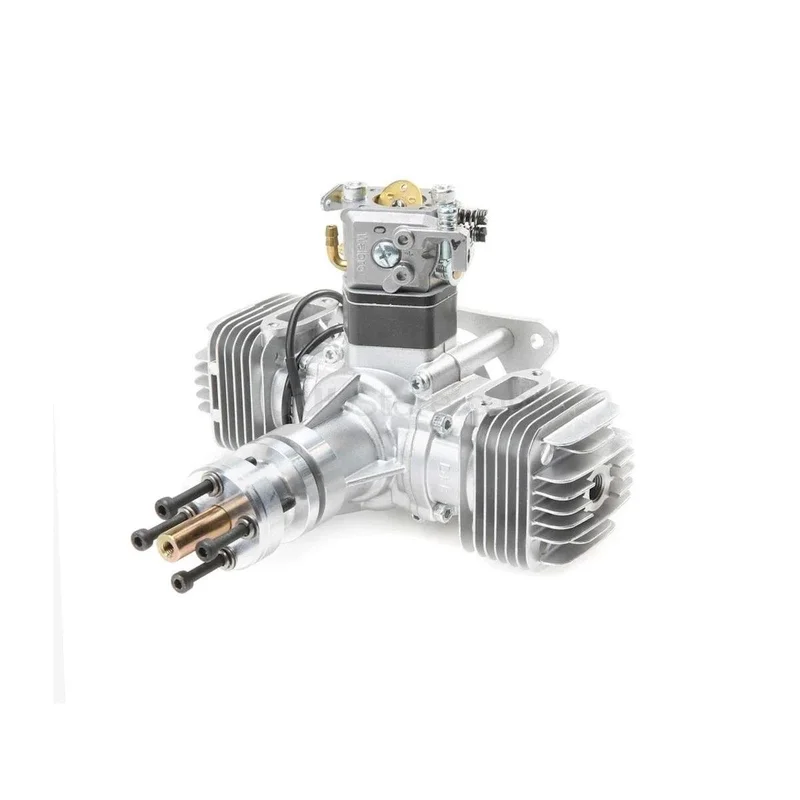

DLE40 Twin Gasoline SPECIFICATIONS

Year: 2014

Upgrade Parts/Accessories: Frame

Type: Airplane parts

Tool Supplies: Assembly Category

Sub-type: Engine.Motors

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 18+.12+y

RC Parts & Accs: Engines

Part: Engine

Origin: Mainland China

Model: DLE40

Material: Metal

Fuel Source: Gasoline

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

For Vehicle: Airplane

Country/Region of Manufacture: China

Brand Name: uuustore

Engines DLE40

Specifications:
Stock Number: DLEG0040
Displacement: 40.0 cc (2.45 cu in)
Bore (x 2): 1.26 in (32 mm)
Stroke (x 2): 0.98 in (25 mm)
Total Weight: 3.3 lb (1.5 kg)
RPM Range: 1500-8500
Output: 4.8 hp @ 8500 rpm
Includes: electronic ignition module. 2 each of mufflers and spark plugs. standoffs. spiral wire wrap. connector safety clips & manual
Requires: ignition battery & propeller
Suggested Propellers: 19×8. 19×10. 20×8 & 20×10

Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH. 6.6V LiFe or 2S LiPo pack
Gas/Oil Mix: 30:1
Replacement Spark Plug: DLEG4026
Static Thrust: 20.9 lb (9.5 kg) @ 328 feet altitude. 18.7 lb (8.5 kg) @ 1.800 feet altitude
Weight Breakdown: Engine: 2.58lb (1170 g). Muffler (x2): 3.6 oz (102 g). Ignition Module: 5.3 oz (149 g). Standoffs: 0.7 oz (19 g). Misc: 2 oz (56 g)
