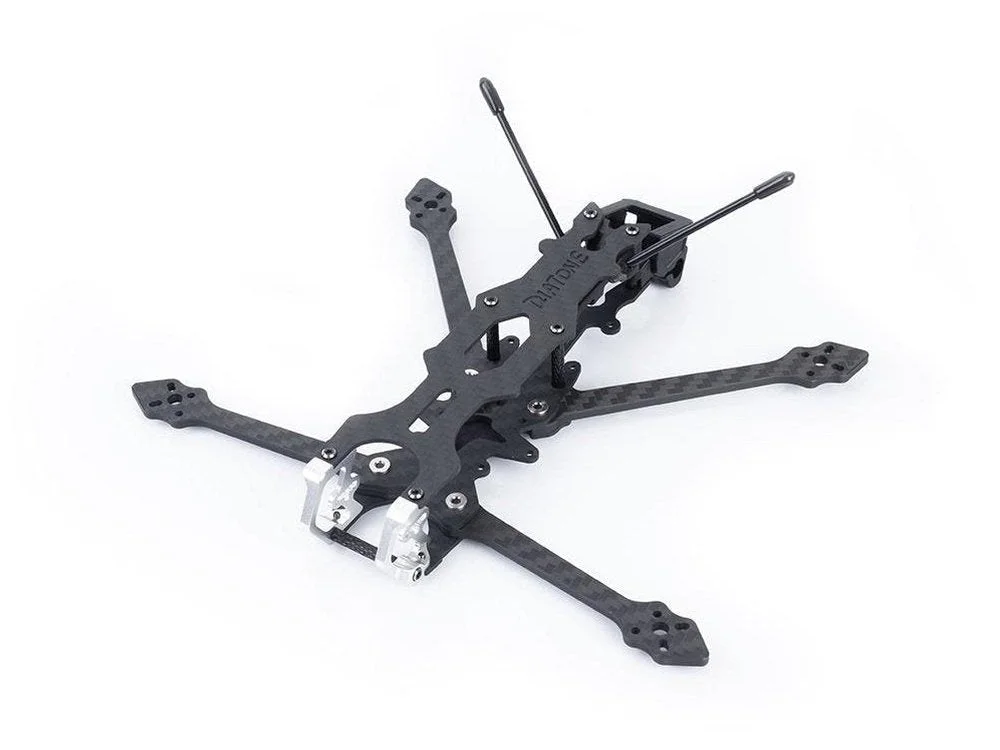

Diatone Roma F4 4 Inch LR Frame Kit

Description

As the ROMA series’ first lightweight design, the Roma F4 LR long-endurance frame weighs only 47g. It’s a light and portable 4-inch design, best flown with 18650 Lithium Ion battery packs to get the most flight-time. Equip ROMA F4 LR with a GPS module, and long-distance flight is no longer exclusively for large-sized quads. The F4 LR frame is compatible with all injection molded parts in the ROMA series, including the adjustable GoPro mount.

Specifications:

• Wheelbase：176mm
• Weight:  47g
• Prop Size：4 inch
• FC Mounting: 20×20/26.5×26.5m（M2）
• Motor Mounting: 9mm/12mm
• Recommended Motor:  13-14 Series Motors
• Camera Spacing: 20mm
• Top Plate: 1.5mm
• Medium Plate: 1.5mm
• Bottom Plate: 1.5mm
• Arm: 3mm
• Rated Voltage (Recommendation)：4S~6S
• Aluminum alloy:  7075
• Carbon fiber: T300 3K

Includes:
1x Diatone Roma F4 4 Inch LR Frame Kit

Download Frame Diagram
