Description

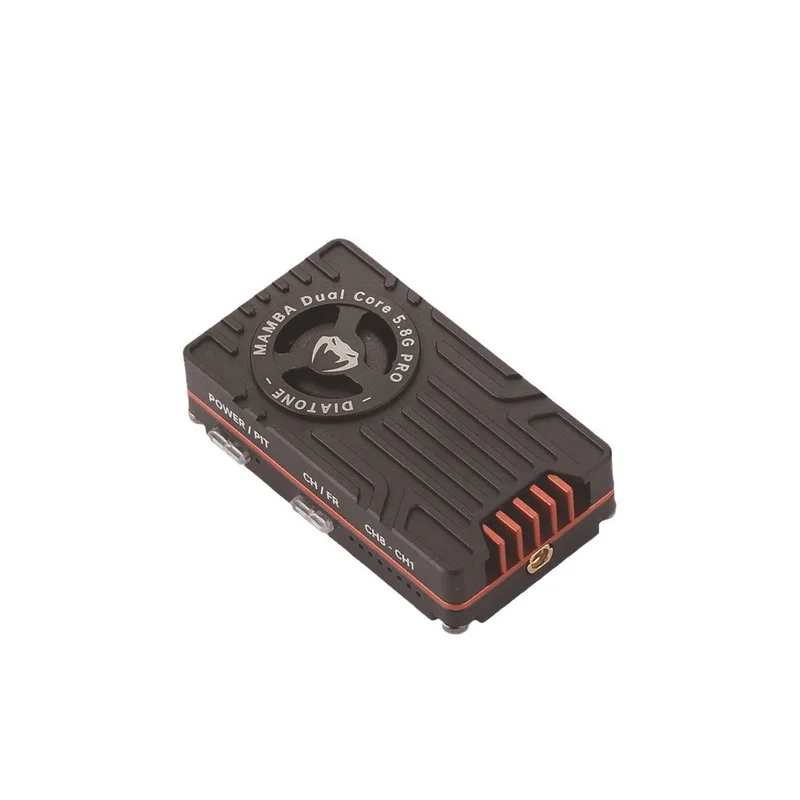

Diatone MAMBA 5.8G 2.5W Pro VTX
Specifications:
Manual:
Model ：MAMBA 5.8G 2.5W Pro Dual Core Video Transmitter
Working Voltage:7-36V DC
Working Current:
≤680mA (12V/1000mW)
≤1400mA (12V/2500mW)
Working Temp: -10~60 ℃
RF impedance:50Ω
Video Input Impedance:75Ω
Antenna Connector: MMCX
Input video amplitude: CVBS 0.8~1.2VP-P
Video Format: NTSC / PAL
Protocol：IRC
Number of Channels:72CH (A-B-E-F-R-L-O-U-H)
Output Power: PIT/25mw/1000mw/2000/2500mw
Size: 53×29.4×14.4mm
Mounting hole:20×20mm/M2
Weight:30g
