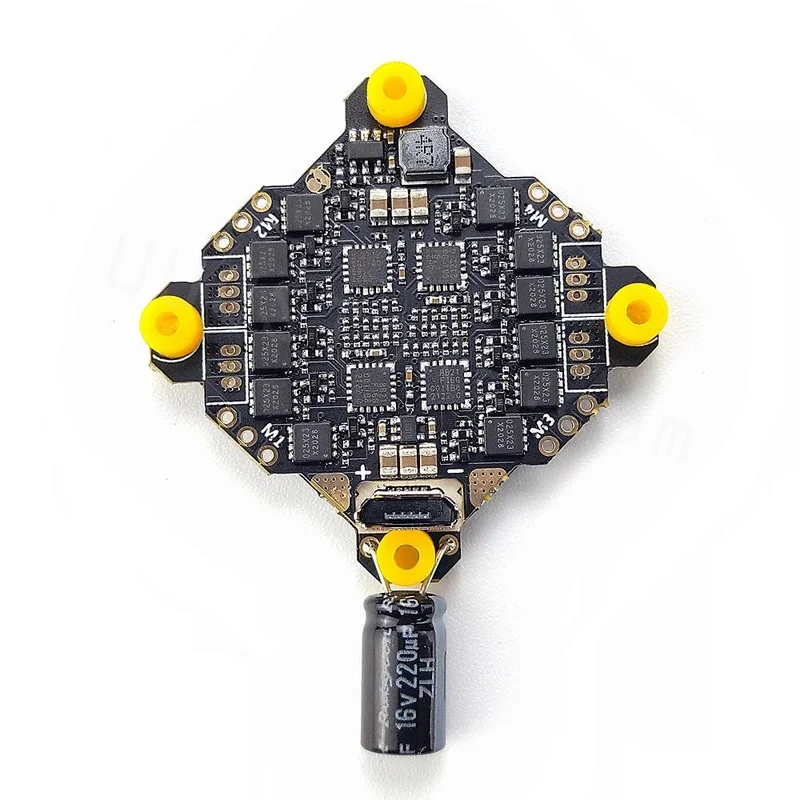

DarwinFPV ExpressLRS ELRS – 2.4Ghz F411 1~3S AIO Flight Controller Whoop Betaflight F4 15A OSD BEC BL_S 4In1 ESC for FPV RC Drone

Description

DarwinFPV ExpressLRS ELRS SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembly Category

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y.18+

RC Parts & Accs: Speed Controllers

Origin: Mainland China

Model Number: DarwinFPV ELRS F4 FC

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore

DarwinFPV ExpressLRS ELRS 2.4Ghz F411 1~3S AIO Flight Controller Whoop Betaflight F4 15A OSD BEC BL_S 4In1 ESC for FPV RC Drone

Specifications:Brand: DarwinFPVItem Name: F411 ELRS AIO Flight Controller

ESC:
Input Voltage: 3~13.5V DCIN(1~3SLiPo)
Constant Current: 15A
Peak Current: 17A
BEC Ouput: No
MCU: 48MHz EFM8BB21F16G
Protocol:DSHOT/Oneshot/MultiShot
BLHeli_S Firmware target： Bluejay_S_H_50_48_v0.14
Telemetery:No
Current Sensor:No

Flight Controller:
MCU: 100MHz STM32F411CEU6
IMU: ICM-20689(SPI)
Baro: No
Blackbox: No
OSD:Betaflight OSD AT7456E
2xUarts(1.2)
RF: SX1280(2.4GHz)
1xSoftserial supported(S5)
3~13.5V DCIN(1~3SLiPo)
BEC:5V/2A & 3.3V/0.2A

LDO3.3V: Max 200mA
Battery Voltage Sensor: 1:10(Scale110)
BetaFlight target: betaflight_4.3.0_BETAFPVF4SX1280

Size: 37x36x10.8mm
Installing Hole:25.5×25.5mm(M2)
Weight: 5.0g

Package included:
1X F411 ELRS AIO Flight Controller

SV GND Smart Auido RX2 TX2 VTX FXI CAM Betafight OSD SBUS(RXI interter) Buz- 4.5V Buz+ GND 3.3v USB GND ICM20689 USB D+ USB D- 32 CRT USB 5V STM3ZF4TICEU6 IPEX MHF SX1280 RGB Extend FC LED Red FC BOOT Button RGB RC LED Blue ’56E BEOJAZN
