Description

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Car Shell Column

Tool Supplies: Cutting

Technical parameters: Value 2

Size: 48x40x13mm

Remote Control Peripherals/Devices: Receivers

Recommend Age: 14+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Plastic Type: PC

Origin: CH(Origin)

Model Number: U-blox ANN-MS

Material: Plastic

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Brand Name: CUAV

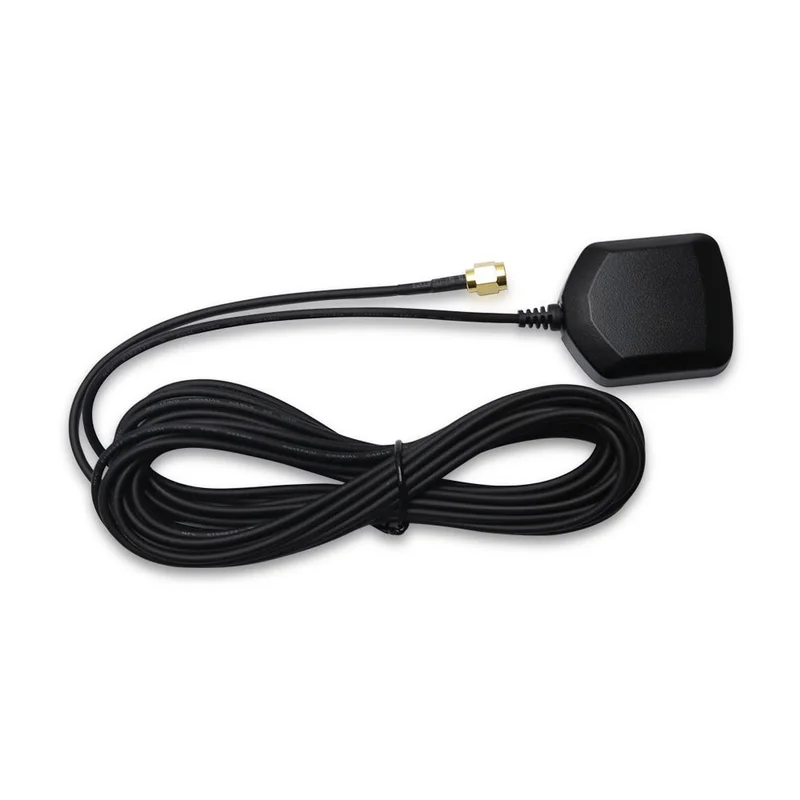

The antenna’s housing material is polycarbonate (PC). with dimensions given in millimeters. Refer to Figure 1 for the mechanical outline.

Mechanical Data:• Weight: 105g• Dimensions: 48mm x 40mm x 13mm (L x W x H)• Cable Type: RG174 Standard• Connectors: + SMA (Main Connector): ANN-MS-0 + SMB (Secondary Connector): MC + Mounting: Magnetic Base• Housing Color: Black

SMA Connector Specifications:• Impedance: 50 Ohms• Frequency Range: 0 – 12.4 GHz (on flexible cable)• Dielectric Strength: Up to 250V AC at sea level. withstanding RG-316 standards• VSWR: Straight: ≤3 max. Contact Resistance: + Center Contact: ≤6 mΩ max + Outer Contact: ≤100 mm² max• Insulator Resistance: ≥5000 MΩ minNote: The Table 5 information appears to be a separate section with mechanical specifications for the SMA connector. If you’d like me to rewrite that as well. please let me know!

SMB Connector Specifications:• Impedance: 50 Ohms• Frequency Range: 0-4 GHz• Dielectric Strength: Withstands up to 350V AC at sea level. voltage• VSWR: + Straight: ≤3 max + Right Angle: ≤5 max• Contact Resistance: + Center Contact: ≤6 mΩ max + Outer Contact: ≤2.5 mΩ max• Insulator Resistance: ≥1000 MΩ minNote:* The connector body is made of Brass per JIS-C3604BD and can have a Nickel or Gold plating.* The insulator material is PTFE (Polytetrafluoroethylene).* The crimp ferrule is made of Annealed Copper with Nickel or Gold plating.

MCX Connector Specifications:• Impedance: 50 Ohms• Frequency Range: 0-6 GHz• Dielectric Strength: Withstands up to 335V AC at sea level. voltage• VSWR: + Straight: ≤1.3 max + Right Angle: ≤1.3 max• Contact Resistance: + Center Contact: ≤5 mΩ max + Outer Contact: ≤2.5 mΩ max• Insulator Resistance: ≥1000 MΩ minNote:* The connector body is made of Brass per JIS- C3604BD and has Nickel or Gold plating.* The insulator material is PTFE (Polytetrafluoroethylene).* The crimp ferrule is not specified.

The antenna’s electrical specifications are provided in Table 12. Key characteristics include:• Frequency: 1575 MHz – 3 MHz• VSWR (Voltage Standing Wave Ratio): ≤2 max• Bandwidth: ≥20 MHz min• Impedance: 50 Ohms• Peak Gain (dBiC): ≥8.08 dBiC at -90° ± 0.7° (over 75% volume)

Part Number: ANN-MS-0-005• GPS Antenna Part Number: 700000.0200.005 M827U (Made in Taiwan)• Explanation: + The part number includes options and quality. + The Type Number corresponds to different hardware versions.

Order Update:• Date: June 29. 2021 05:19• Shipment Information: + Shipping Method: AliExpress Standard Shipping + Estimated Delivery Date: July 1. 2021 04:17 AM• Product : Solid. Reliable Store.• Color: BLACK (VSPlus Carrier Board)• Quality Comment: Sturdy and of good quality
