Description

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Universal Joint

Tool Supplies: Tools

Technical parameters: KV1100

Size: 21X20X10mm

Remote Control Peripherals/Devices: Motor

Recommend Age: 14+y

RC Parts & Accs: Motor Components

Quantity: 1 pcs

Origin: Mainland China

Model Number: 5015

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Certification: CE.FCC.RoHS

Brand Name: CUAV

5015 wire presure test: 500V

5015 wire: 150mm(extended wires)

5015 degree of protection: IP45

5015 configuration: 24N28P

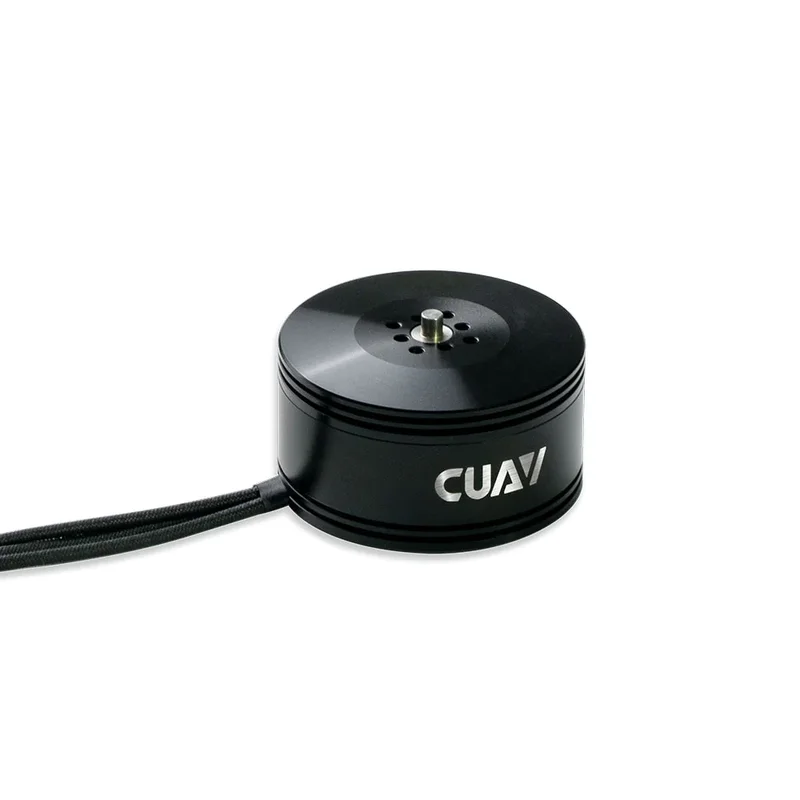

CUAV 5015 drone motor

CUAV 5015 12S UAV Drone Brushless Motor Controller FPV RC QAV250 X210 Racing Drone Multicopter Motor

CUAV 5015 IPE V3.0 motor features a lightweight design at 228 grams. with an impressive protection level and large bearings for smooth operation. It has a maximum thrust of 9kg and includes double security measures on the shaft lock.

The 50V3 series motors have been optimized for use in demanding environments. featuring multiple airflow holes on both the upper and lower covers to enhance anti-corrosion performance. Additionally. the motor’s iron core has undergone specialized rust-resistant treatment to further ensure durability.

The motor features a 6mm anti-falling knurled steel shaft. eliminating the need for traditional screw-locking methods. Additionally. the shaft diameter has been upgraded and increased by 1mm to enhance running stability and extend service life.

The motor features a double security shaft lock system. utilizing both clip and locking collar mechanisms to ensure exceptional flying safety even at high RPM and under continuous high power operation.

Our focus is on delivering high-quality materials and craftsmanship. ensuring that every detail is meticulously considered to produce solid. high-performance motors.

The CUAV 5015 V3.0 drone motor is designed for use in quadcopters and VTOL aircraft. capable of carrying payloads of up to 1500-3500g per rotor when paired with 16-22

The CUAV 5015 V3.0 drone motor is designed for use in quadcopters and VTOL aircraft. capable of carrying payloads ranging from 1500-3500g per rotor when paired with 16-22

The specifications for this motor include:* ESC: MAD AMPX 40A* Motor weight: 232g* Recommended propeller: FLUXER 22’* Product boxed weight: 367g* Single rotor take-off weight: 3800g (17)* Maximum power: 520W* Rated voltage: 12S* Maximum thrust: 8401g* Current: 0.744A at 20V* Max torque: 53N-m* Internal resistance: 129mΩ

Packing List:* Accessories: + 5015 IPE V3.0 Motor + IPC Propeller Plate + IP C Adapter Ring + 3pcs 3.5mm Bullet Connector + 3ppcs Heat Shrinkable Tube + M3 x 4mm (4 pieces)* Motor Screws: 6 pieces* M3 x 1mm (2 pieces)
