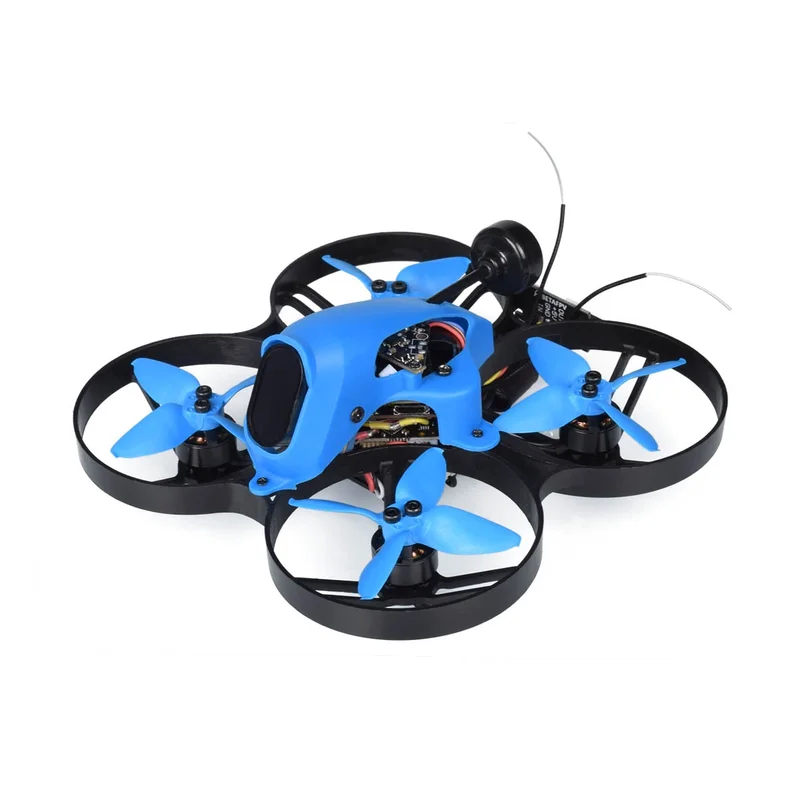

BetaFPV Beta85X 4K

Description

It’s here at last – the truly 4S ready, 4K equipped cinewhoop! The revolutionary dual-lens Caddx Tarsier camera provides dynamic FPV flight while simultaneously recording flawless 4K video – it’s never been easier to record your flights.

rSporting a F4 flight controller, upgraded 16A BLHeli_32 ESCs, and 1105-5000 motors, the all new 85X has a powertrain to match its payload. Run 4S LiPos for the ultimate in Whoop flight – you might even forget that you’re not flying a full size quad!rr

r
• Weight: 88g (without battery)

r

• Motors: 1105 5000kV with connector

r

• Props: EMAX Avan 2″ 4-Blades Props

r

• FPV Camera: Caddx Tarsier 4K

r

• Receiver: DSMX

r

r

FC Specifications

r

r
• CPU: STM32F405

r

• Six-Axis: MPU6A000

r

• Size: 26mm x 26mm, whoop mounting pattern

r

• Firmware version: Betaflight OMNIBUSF4SD (OBSD)

r

• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

r

r

ESC Specifications

r

r
• MCU: STM32F051K66

r

• Supports PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200

r

• Input voltage: 3S-4S LiPo

r

• Cotinuous current: 16A

r

• Peak current: 19A

r

• BLHELI_32 Firmware target: BETAFPV-16A-32bit

r

r

Camera Specifications

r

r
• Weight: 19.5g

r

• FPV Resolution: 1200TVL

r

• Field of view: 4K @ 150° (16:9), FPV @ 165° (4:3)

r

• Angle: 20°/30° switchable

r

• TV System: NTSC/PAL switchable
